Pion Power Liquid Cooling BESS
Loading images...
Loading product description…
Large Factories and Data Centers

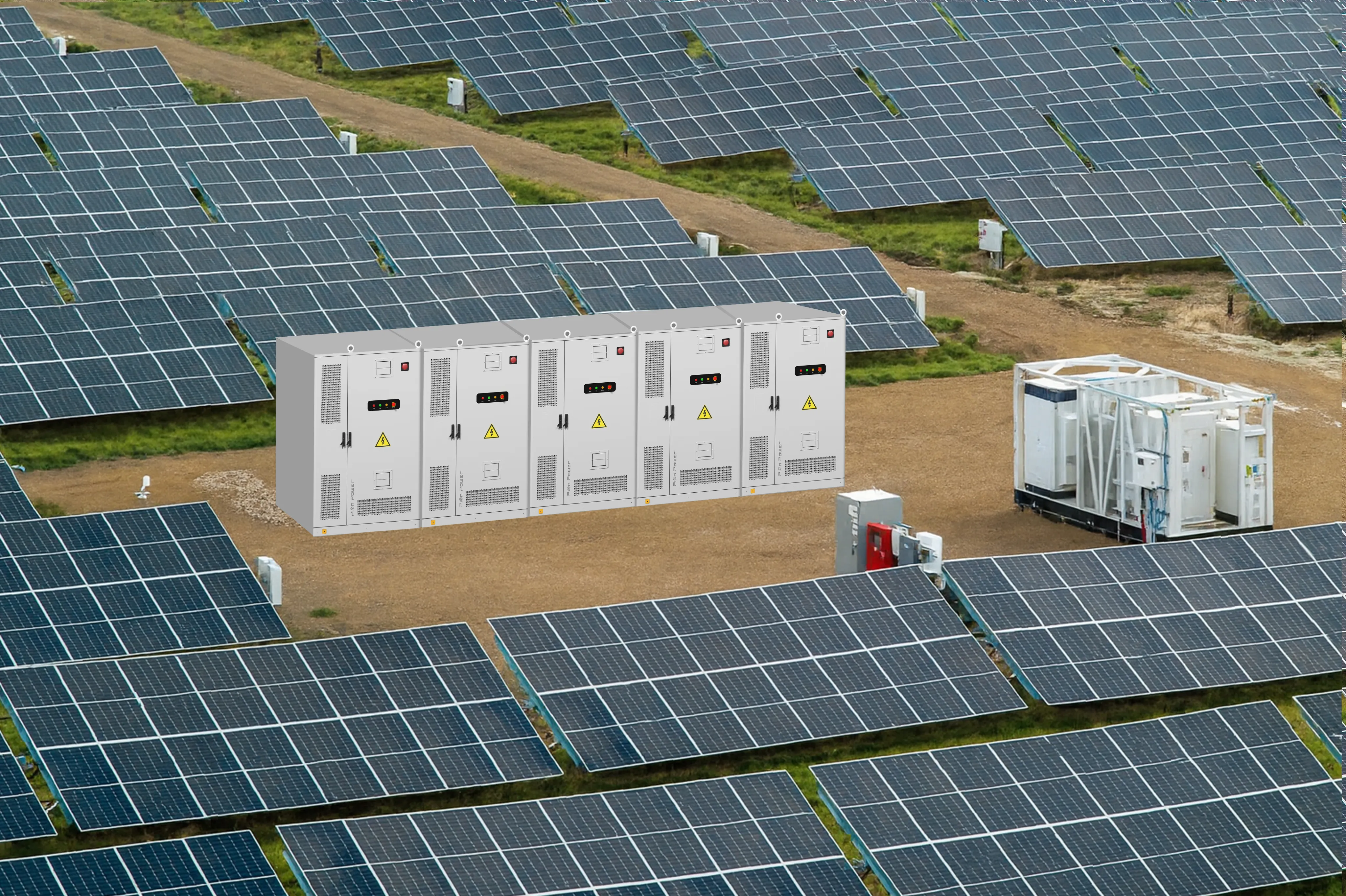

Shopping Malls, Farms, and Other Large Facilities
Industrial Parks
Efficient, Powerful, and Energy Smart

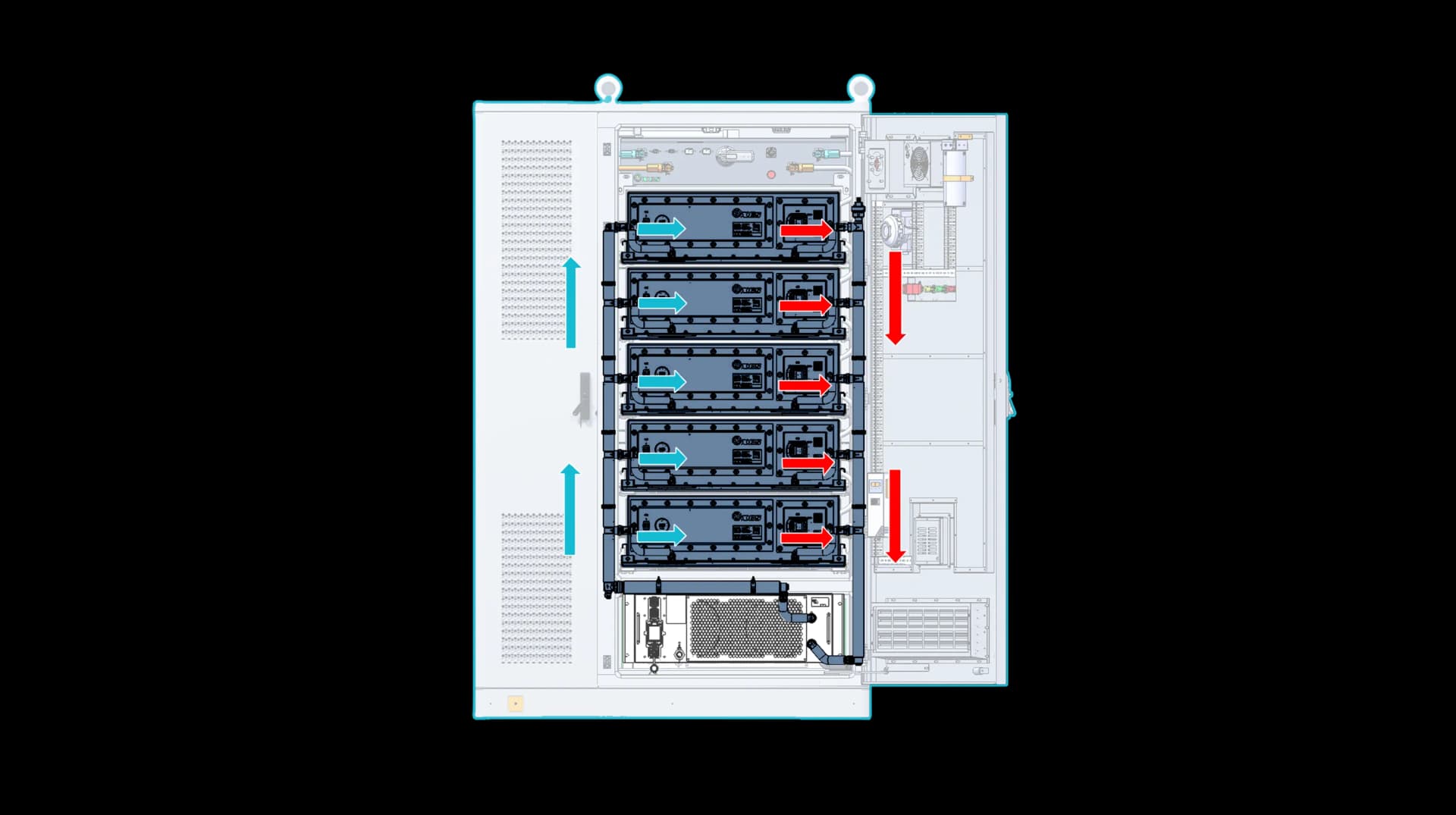

High Energy Density with Faster, Precision Cooling
The Pion Power Liquid Cooling BESS features a tightly integrated structure that delivers exceptional energy density while maintaining consistent thermal balance. Its efficient liquid cooling system provides faster heat dissipation, keeping the cell temperature differential within ≤5°C. This reduces energy loss and supports stable, high-rate charge and discharge performance
Smart Battery Management
Pion Power Liquid Cooling BESS conducts real-time monitoring and use passive balancing of each battery cluster to minimize internal resistance and voltage deviation. This ensures consistent performance across modules, enhances overall energy efficiency, and extends the operational lifespan of the battery system
Multi-Protocol Integration for Seamless Communication
The system natively supports Modbus, TCP, MQTT, and DL/T645 protocols, enabling direct integration with EMS, SCADA, and smart grid platforms, without requiring external protocol converters or middleware. This significantly shortens deployment time, reduces system complexity, and ensures stable, low-latency data transmission.
Flexible & Scalable
Each cabinet is equipped with a built-in EMS. When connected in parallel (up to 10 units), the system automatically selects one cabinet as the master, while the others operate as slave units. Designed for 1000V DC systems, this setup allows seamless capacity expansion as your energy needs grow.
Quiet Operation
Designed for urban and industrial environments, the system operates at noise levels below 75dB, ensuring minimal disruption during continuous use, especially suitable for deployments near residential areas, office buildings, schools, and noise-sensitive facilities.
•
Peak Shaving
•
Prevents backfeed into the utility grid
•
Grid-Tied & Off-Grid Switching
•
Demand Response Capability

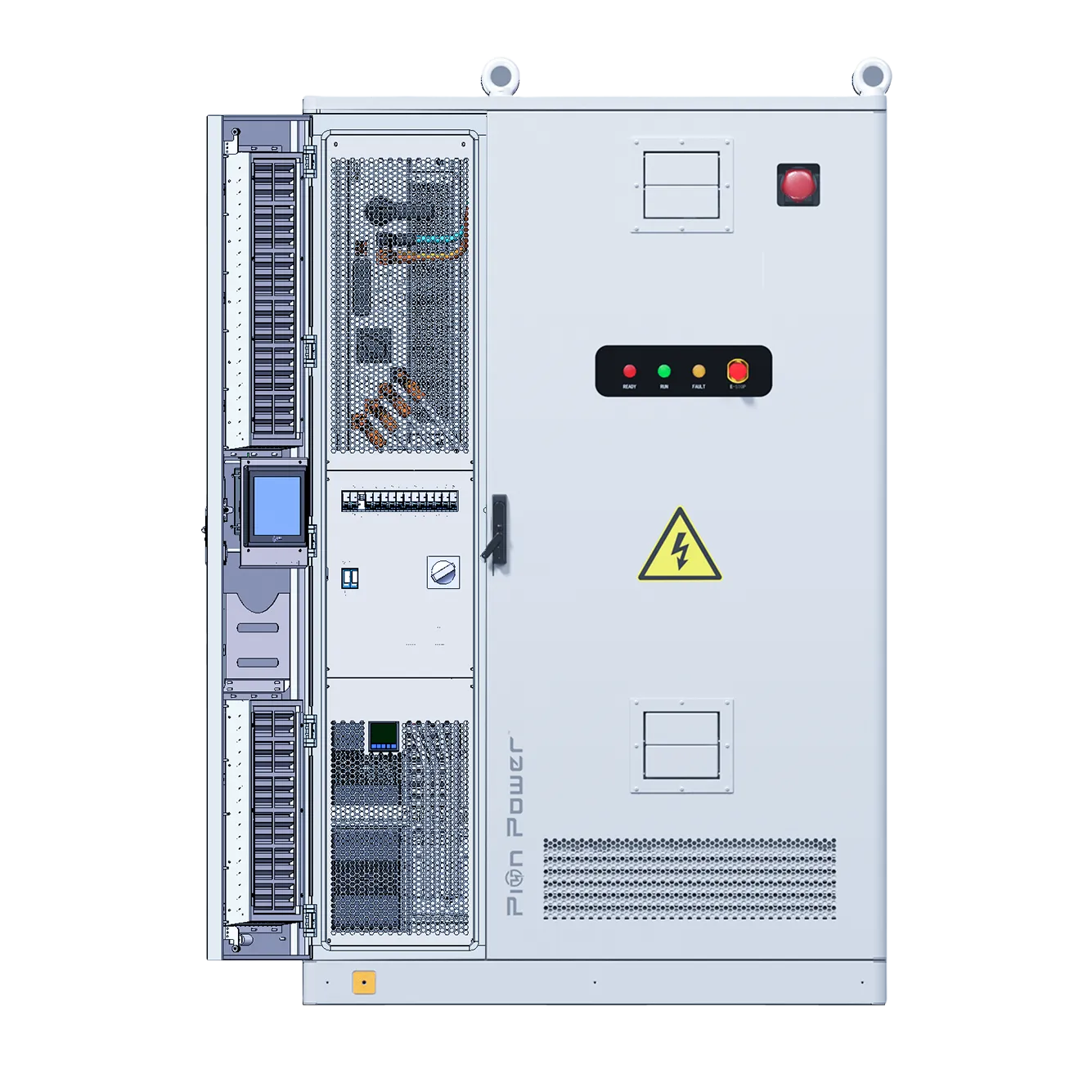

Product Details
1. Air inlet/PCS
2. Front left grounding point
3. Air outlet/Explosion-proof fan
4. Audible and visual alarm
5. Emergency stop button
6. Air inlet/Explosion-proof fan
Product Details
Specification
DC Side
Cell Type
Lithium iron phosphate
Cell Specification
3.2V, 314Ah
System Configuration
(1P52S) 5S
System Rated Capacity (kWh)
261
System Nominal Voltage (V)
832
System Voltage Range (V)
750~936
Charge/Discharge Current (Rated, A)
157 (0.5C)
Charge/Discharge Current (Max., A)
183 (≤0.5P)
AC Side (Grid-Connected)
Rated Output Power (kVA)
125
Rated Current (A)
150
Rated Grid Voltage (Vac)
277/480Vac, 3W+N+PE
Rated Grid Frequency (Hz)
60
Power Factor Range
1.0(Lagging)…1.0(Leading)
Grid-Connected Current Total Harmonic Distortion (THDi)
≤3%
AC Side (Grid-Connected/Off-Grid)
Rated Output Voltage (Vac)
277/480Vac, 3W+N+PE
Max. Output Power (kVA)
125
Max. AC Current (A)
150 (linear load) / 100 (non-linear load)
Max. Unbalanced Load (kVA)
22 (linear load)
Output Voltage Frequency (Hz)
60
Max. Allowable Crest Factor
2.5
Total Harmonic Distortion Rate of Output Voltage (THDv)
<3%
Protection
Protection Functions
AC/DC short circuit protection, DC/AC overvoltage/undervoltage protection, AC/DC overcurrent protection, SOC alarm, cell overvoltage/undervoltage protection, high temperature alarm, overload protection
System Parameters
Isolation Transformer Type
Non-isolated
Number of Parallel Units (PCS)
10
Auxiliary Power per Cabinet (kW)
3.5
Fire Extinguishing Medium
PACK-level/cabinet-level aerosol + water fire suppression
Fire Detection Type
Heat, CO, smoke detectors
Operating Environment
Permissible Ambient Temperature
-25°C ~ 50°C (>40°C derating operation)
Permissible Ambient Humidity
0~95%RH (No condensation)
Altitude
2000m (>2000m derating)
Basic Parameters
Dimensions (WxDxH)
(1350±10)x(1400±10)x(2100±10) mm
Weight
2850kg±2%
Cooling Method
Intelligent liquid cooling
Coolant
50% water ~ 50% ethylene glycol solution
Ingress Protection (IP)
IP55
Protection Degree
NEMA type 3R
Noise
<75dB
Communication Parameters
External Communication Interface
RJ45
External Communication Protocol
Modbus TCP, MQTT
Certification
UL1973:2022, UL9540:2023, UL9540A:2025, NFPA69, UL60730, UN38.3
Specification
DC Side
Cell Type
Lithium iron phosphate
Cell Specification
3.2V, 314Ah
System Configuration
(1P52S) 5S
System Rated Capacity (kWh)
261
System Nominal Voltage (V)
832
System Voltage Range (V)
750~936
Charge/Discharge Current (Rated, A)
157 (0.5C)
Charge/Discharge Current (Max., A)
183 (≤0.5P)
AC Side (Grid-Connected)
Rated Output Power (kVA)
125
Rated Current (A)
150
Rated Grid Voltage (Vac)
277/480Vac, 3W+N+PE
Rated Grid Frequency (Hz)
60
Power Factor Range
1.0(Lagging)…1.0(Leading)
Grid-Connected Current Total Harmonic Distortion (THDi)
≤3%
AC Side (Grid-Connected/Off-Grid)
Rated Output Voltage (Vac)
277/480Vac, 3W+N+PE
Max. Output Power (kVA)
125
Max. AC Current (A)
150 (linear load) / 100 (non-linear load)
Max. Unbalanced Load (kVA)
22 (linear load)
Output Voltage Frequency (Hz)
60
Max. Allowable Crest Factor
2.5
Total Harmonic Distortion Rate of Output Voltage (THDv)
<3%
Protection
Protection Functions
AC/DC short circuit protection, DC/AC overvoltage/undervoltage protection, AC/DC overcurrent protection, SOC alarm, cell overvoltage/undervoltage protection, high temperature alarm, overload protection
System Parameters
Isolation Transformer Type
Non-isolated
Number of Parallel Units (PCS)
10
Auxiliary Power per Cabinet (kW)
3.5
Fire Extinguishing Medium
PACK-level/cabinet-level aerosol + water fire suppression
Fire Detection Type
Heat, CO, smoke detectors
Operating Environment
Permissible Ambient Temperature
-25°C ~ 50°C (>40°C derating operation)
Permissible Ambient Humidity
0~95%RH (No condensation)
Altitude
2000m (>2000m derating)
Basic Parameters
Dimensions (WxDxH)
(1350±10)x(1400±10)x(2100±10) mm
Weight
2850kg±2%
Cooling Method
Intelligent liquid cooling
Coolant
50% water ~ 50% ethylene glycol solution
Ingress Protection (IP)
IP55
Protection Degree
NEMA type 3R
Noise
<75dB
Communication Parameters
External Communication Interface
RJ45
External Communication Protocol
Modbus TCP, MQTT
Certification
UL1973:2022, UL9540:2023, UL9540A:2025, NFPA69, UL60730, UN38.3
