Flex-AC LE Level 2 Portable EV Charger
Loading images...
Loading product description…
Flex-AC LE
Effortless Charging Anywhere, Anytime
No Waiting No Hassle
Forget about repeating settings every time you charge. Simply plug in your vehicle and experience instant charging with customized speed, all thanks to the Built-in chip
Seamless Touch Control
Take full control of your charging experience—all at the touch of a button
Efficiency at Its Finest
Reduce wear and tear on your adaptor and outlet while saving time and money with our wall mount bracket for easier installation
Freedom of Charging Anywhere
With our EV charger's included NEMA 14-50 and 5-15 adaptors, enjoy the freedom to charge your vehicle wherever you are
Discover Everything You Need from the Display and Controls
1. OLED Screen
Stay informed and displayed with the OLED screen, reducing the need to make unnecessary walks to your EV for vital charging information
2. Monitoring
Monitor real-time data on voltage, current, power, and time, all conveniently displayed for your convenience
3. Adjustable current
Flex-AC LE offers a versatile range of 8-40A, allowing you to select the power setting that matches your charging needs
4. Delayed charging
Schedule the charging session for the next 24 hours and enjoy a relaxing night.
Savings
Save on your electricity bill by delaying charging sessions to off-peak hours via the button and OLED screen.
Built-in chip
No effort needed! Designed to automatically save your last charging settings.
Elevating Your Outdoor Charging Experience
Embrace the convenience of outdoor EV charging and power up your EV wherever your adventures take you
Need a faster charger for upgraded EV?
Up to 7X Faster with 40A/9.6kW
With adjustable current capabilities from 8A to 40A you can easily select the perfect power setting to accommodate your new EV’s charging requirements
Upset about no charging station during travel?
Unleash Mobility with NEMA 5-15 & 14-50 Adapters
The Flex-AC LE comes with 2 adapters, designed for both 120V and 240V outlets, enables you to charge your electric vehicle anywhere during travel
Control your EVSE without internet access?
Control at Your Fingertips
The control box of the Flex-AC LE, equipped with 2 buttons and an OLED screen, allows you to monitor, control, and set up your charging sessions without internet
Looking to charge your rented EV?
Compatible with All EV
Flex-AC LE Support most of electric vehicles in North America, including Sedans, SUVs and pick up truck with SAE J1772 including Tesla (with an adaptor)
Tired of carrying heavy chargers?
Travel Light with Flex-AC LE
Flex-AC LE is specifically designed for portability on the road, weighing only 5.9kg, making it effortless to carry and transport.
Every Component is Tested for a Secure Experience
Count on the reliability of our charging system, featuring high-quality components such as adaptors, sensors, and NEMA 4/IP66 enclosures. Each element is chosen to ensure a secure and worry-free charging process.
Intelligent sensing technology
Reliable plug-in solutions
Extreme weather-proofed
Protection from the following hazards:
• Overvoltage
• Undervoltage
• Leakage
• Grounding
• Overcurrent
• Fire and Flame
• Overheating
• Lighting
Protection from hazards:
• Overvoltage
• Undervoltage
• Leakage
Pion Power
Others
NEMA 4 / IP66 Enclosures
Provide robust protection for all electrical components, shielding them from:
• Falling dirt
• Rain / sleet
• Snow
• Windblown dust
• Sand
What is in the Package

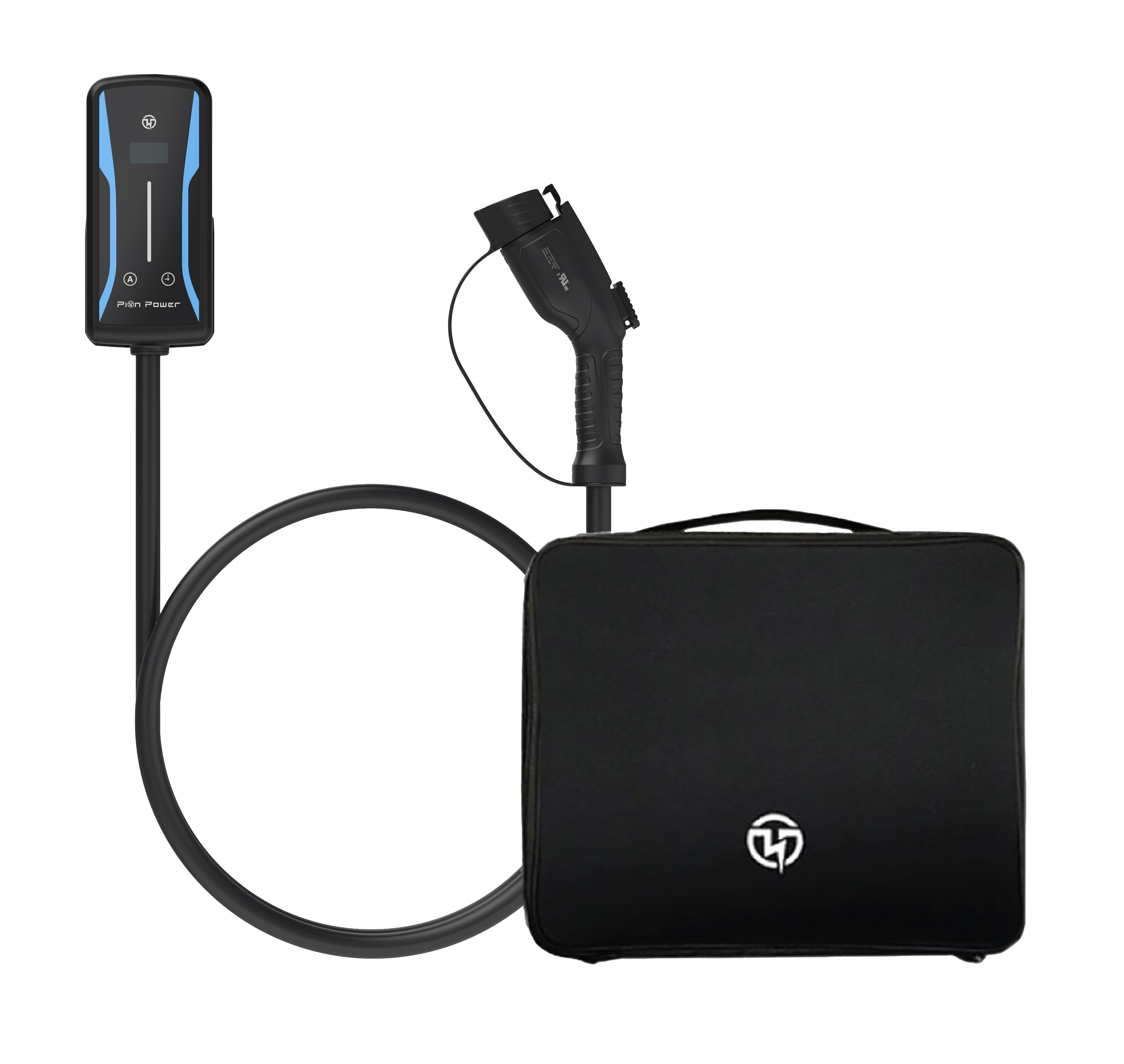

Flex-AC LE EV Charging Station, Organizer Zip Case

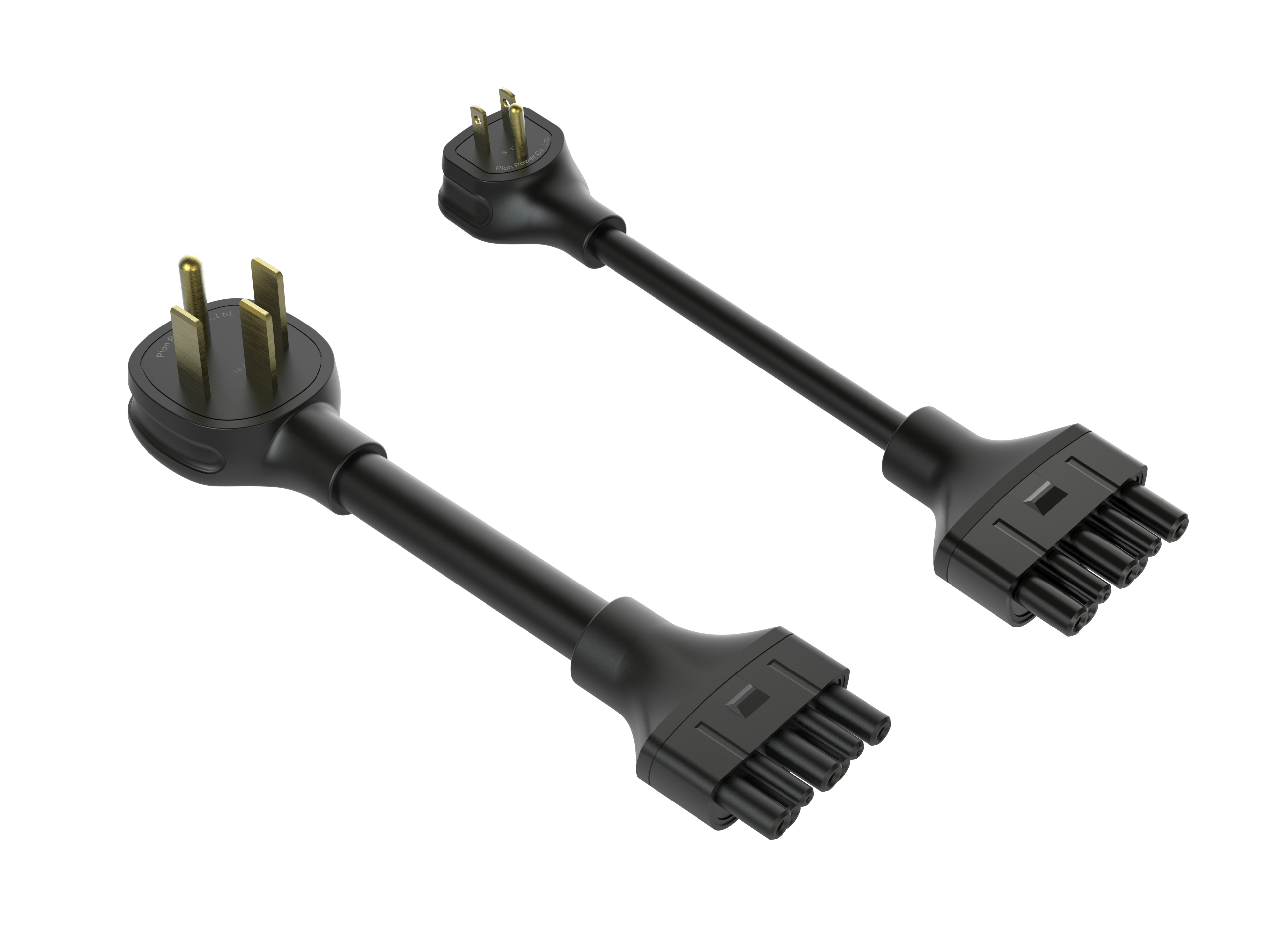

1*N5-15P Adaptor, 1*N14-50P Adaptor
User Manual

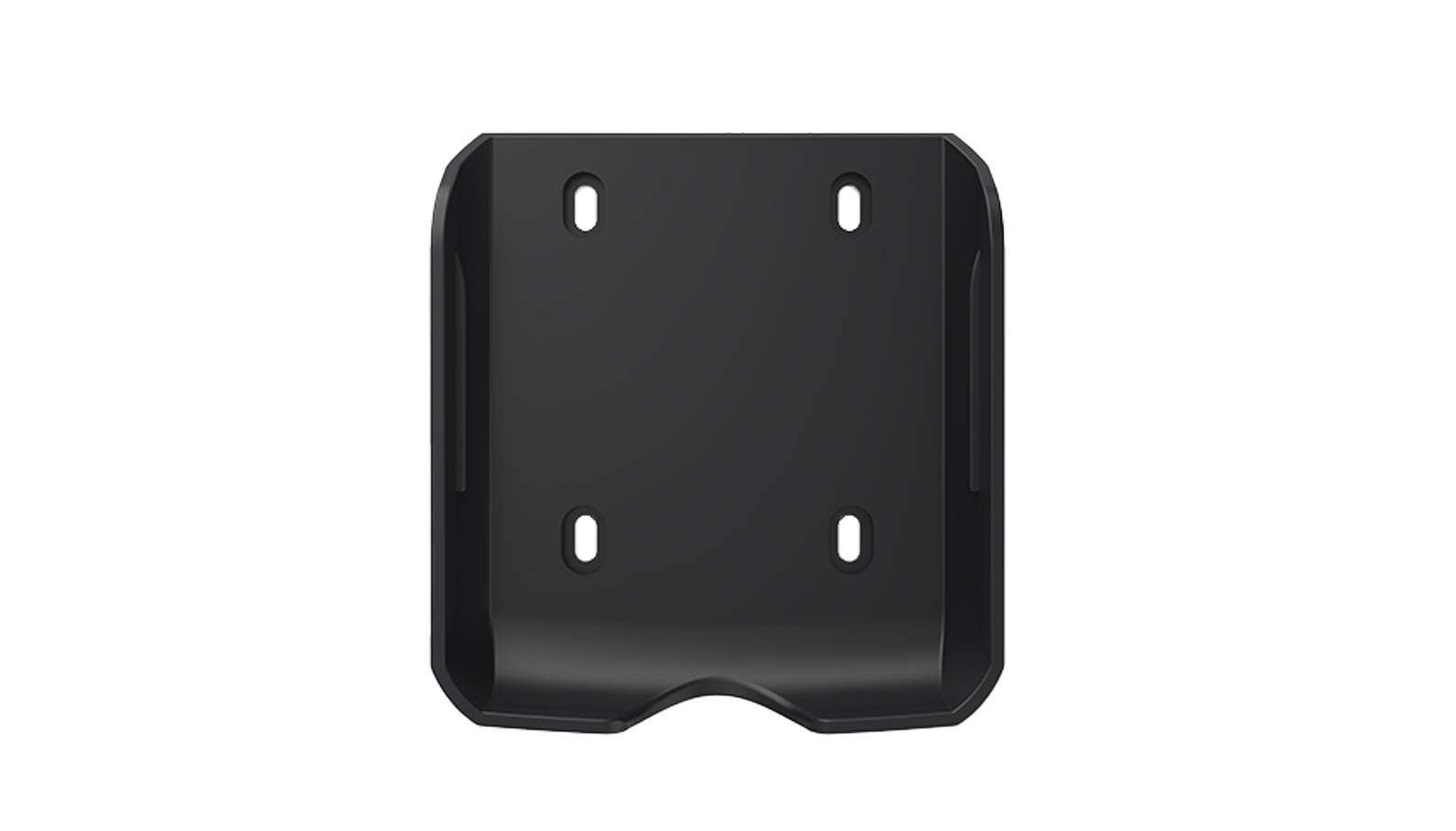

1*Wall-mount Bracket

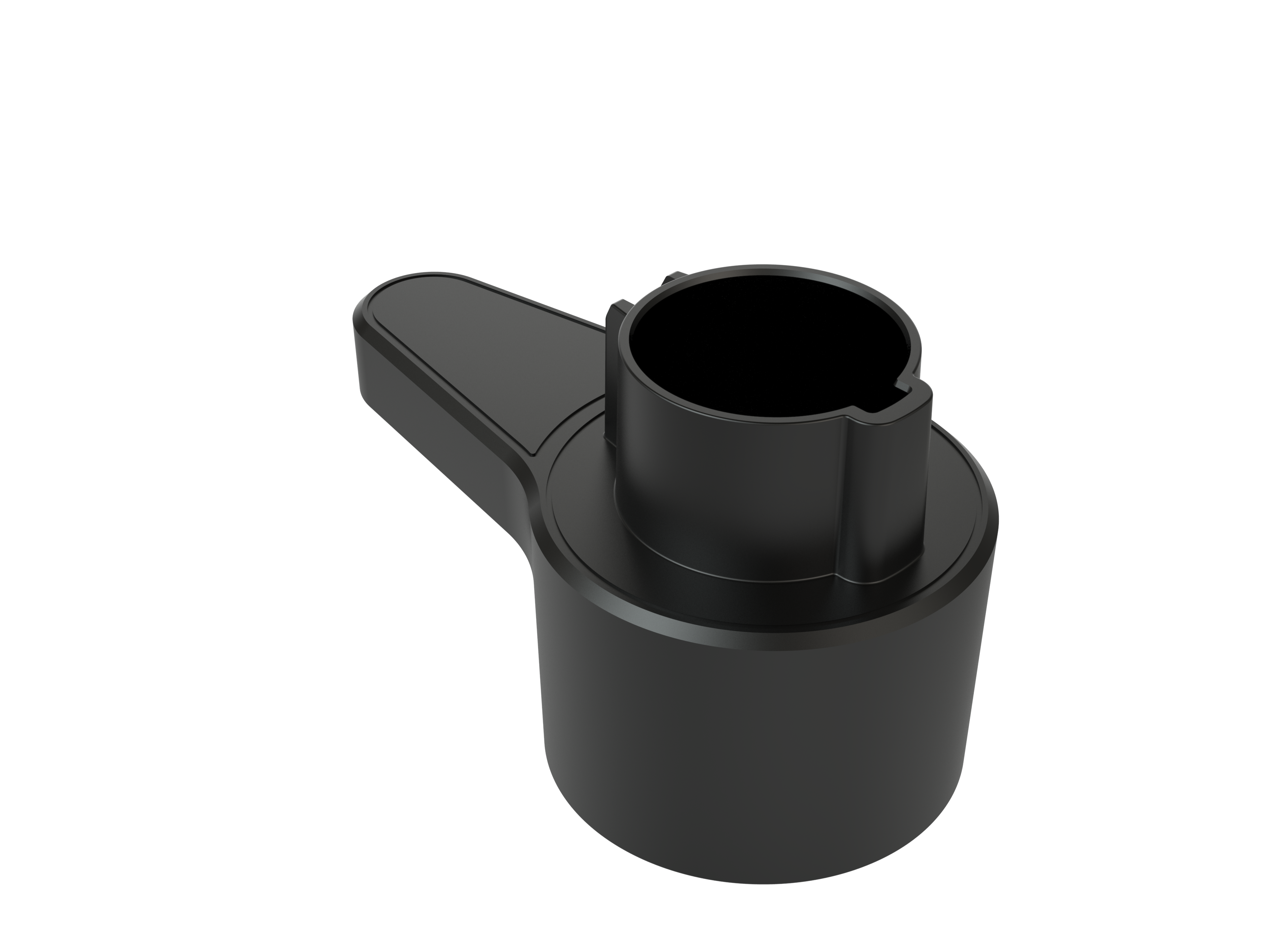

1*Charging handle Holster and Cable Holder
Downloads
Pion Power App
Manage, adjust and monitor your Pion Power Flex-AC LE EV Charger and access real-time energy usage from Pion Power App
Requires iOS 11.0 or above.
Requires Android 5.0 or above.
Downloads
Pion Power App
Manage, adjust and monitor your Pion Power Flex-AC LE EV Charger and access real-time energy usage from Pion Power App
Requires iOS 11.0 or above.
Requires Android 5.0 or above.
Specification
Model: EFAC40FA11
Adapter:
N5-15P
N14-50P
Input Voltage:
120Vac
240Vac
Output Current:
12A
40A
Output Power:
1.4kW
9.6kW
Output Voltage:
100-250 volt AC single -phase
Input Frequency:
50Hz-60Hz
Control Box Material:
PC+PBT. Flame retardance UL94: 5VA
Connecter & Handle Material:
PC+PBT. Copper, silver-plated
Cable Material:
Copper+TPE
Total Length:
22ft (6.6 meters) with charging handle installed
Impact Resistance:
Able to withstand 3.3ft (1 meter) free fall drop and 4,409 lbs (2,000kg) vehicle crush test without critical damage.
LED Indicator:
Red/green/blue
LCD display:
1.3 inch OLED blue screen
Operating Temperature:
-22°F ~ 122°F (-30°C ~ 50°C)
Working Humidity:
5%~95% without condensation
Working Altitude:
<1.24 miles (2,000 meters)
Control Box Enclosure Type:
NEMA 4 (IP66)
Operating Environment:
Indoor/outdoor
Cooling Method:
Natural cooling
Multiple Protection:
Over-voltage protection, Under-voltage protection, Overheating protection, Over-current protection, Leakage protection, Grounding protection, Lightning protection, Fire and flame protection, Waterproof, Dust proof, Antistatic protection
Control Box Dimensions:
9.53 x 4.15 x 2.66 inch (242 x 105.5 x 67.5mm)
Carrying Case Dimensions:
15.35 x 13.78 x 5.12 inch (390 x 350 x 130mm)
Package Dimensions:
17.72 x 16.14 x 7.28 inch (450 x 410 x 185mm)
Net Weight:
13 lbs (5.9kg)
Gross Weight:
17.2 lbs (7.8kg)
External Packing:
Carton
Charging Handle/ Connecter Life Cycle:
10,000 insertion/removal events (no load)
Safety Standards:
UL 2594, UL2231-1, UL2231-2, CSA C22.2 No.280, CSA C22.2 No.281.1, CSA C22.2 No.281.2
Other Certifications:
FCC, FCC ID, Energy Star
Communication:
Bluetooth
Application:
Android/IOS
Warranty:
2-year limited warranty
