EP3000-48V 3000W/3072Wh Extension Battery for E3600LFP
0 Reviews$899.00CAD
Loading...
Options:
Quantity:
1
Pair well with:
Free, Fast shipping
2-Year Worry-Free warranty
30-day return or exchange policy
Customer Support response within 2 business days
Delivery methods:
$899.00CAD

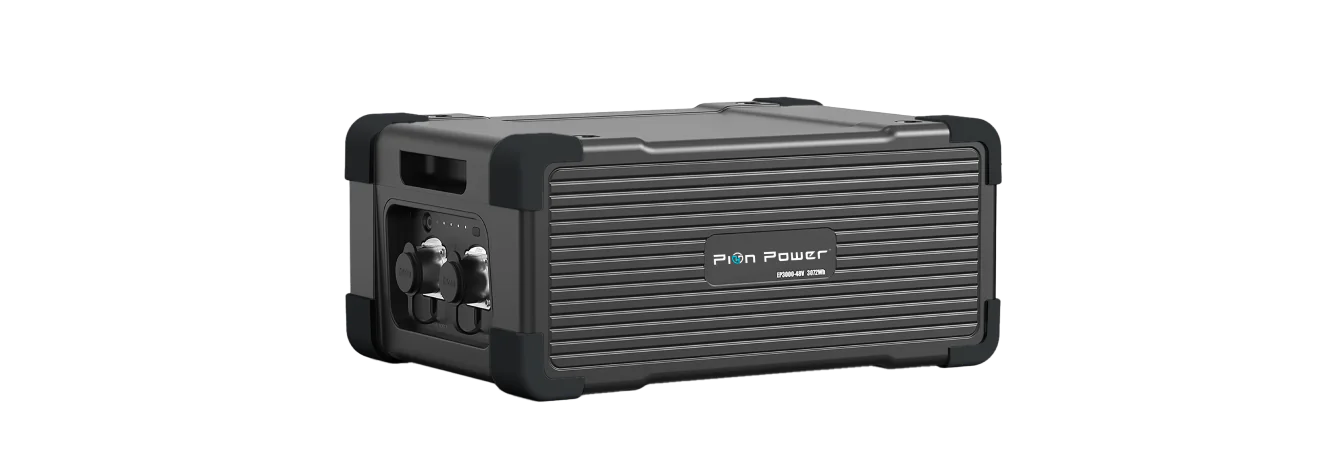

Pion Power EP3000-48V 3072Wh
Unlock potential with Superior Scalability
3-30kWh Capacity
Off-Grid Power for Few Weeks
Expand your E3600LFP with the EP3000-48V for a maximum capacity of 30kWh. Each E3600LFP supports up to 4 EP3000-48V units, and when pairing 2 E3600LFPs with 8 EP3000-48V units, you can achieve the full 30kWh capacity for extended power and reliability.
Beyond Expansion
With a 100W USB-C, 12V/30A DC output, and 18W USB-A port, EP3000-48V is not just for expanding the E3600LFP - it works independently to keep your phones, laptops, mini-fridges, and lights powered wherever you go.
Three Ways to Charge
Choose from three versatile charging methods to suit your needs. Recharge via AC input (400W), solar panels (up to 400W, or car charging 100W （or 400W with 500W car charger) for efficient off-grid power solutions.
Solar Panels (400W)
8-10Hrs
AC Charging with E3600LFP (400W)
8-9Hrs
Car Charging (100V)
30Hrs
Product Details
1. LED Light Panel
2. AC ON/OFF Button
3. DC Output Ports
4. USB-A & USB-C Ports
5. LCD Display
Product Details
What is in the Box
PION POWER EP3000-48V
User Manual
Cable from XT60 to Cigar port and 5525 port *1
MC4 Solar Charging Cable (LSMC4-5GX16) *1
M25 Cascade cable
Solar Cable with 5521 Connector *1
Car Charging Cable with GX16MF-5 Connector *1
Anderson Solar Charging Cable *1
12V Alligator Clips *1
Storage Bag
Corner Protector *6, Metal Connecting Piece *6, Screws *6
Downloads
Specifications
Model: EP3000-48V
Battery Chemistry:
LiFePO4 (Lithium Iron Phosphate)
Capacity:
3072Wh (51.2V, 60Ah)
Lifecycle:
3500+ Cycles to 80% capacity
Outputs:
Inverter Type:
Pure Sine Wave
AC Output:
2 x 110V~60Hz, 3000W (6000W Surge)
DC Output:
XT60 - 12V/30A
USB-A Output:
2 x 5V/2.4A (18W)
USB-C Output:
1 x PD 100W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A)
Recharge:
AC Input:
MJ25 (3+2) *1
100Vac~120Vac 50/60HZ
1800W Max (Charging cable with 15A)
3200W Max (Charging cable with 30A)
Solar Input:
400W; Voc 12V~95V / 15A Max
Car Input:
DC 12V~95V - 400W Max
General:
Dimensions:
L17.3 x W12.2 x H7.8 inches (L441 x W312 x H200 mm)
Weight:
Around 57lb (Around 26kg)
Operating Temperature:
32°F to 113°F (0°C to 45°C) Charging
-4°F to 113°F (-20°C to 45°C) Discharging
Protection:
Over-Voltage, Overheat, Overload, Short-Circuit, Self-Recovery
Certifications:
CE, FCC, ROHS, ICE 60417 - 5172 Class 2
Warranty:
2 Years Product Warranty
Specifications
Model: EP3000-48V
Battery Chemistry:
LiFePO4 (Lithium Iron Phosphate)
Capacity:
3072Wh (51.2V, 60Ah)
Lifecycle:
3500+ Cycles to 80% capacity
Outputs:
Inverter Type:
Pure Sine Wave
AC Output:
2 x 110V~60Hz, 3000W (6000W Surge)
DC Output:
XT60 - 12V/30A
USB-A Output:
2 x 5V/2.4A (18W)
USB-C Output:
1 x PD 100W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A)
Recharge:
AC Input:
MJ25 (3+2) *1
100Vac~120Vac 50/60HZ
1800W Max (Charging cable with 15A)
3200W Max (Charging cable with 30A)
Solar Input:
400W; Voc 12V~95V / 15A Max
Car Input:
DC 12V~95V - 400W Max
General:
Dimensions:
L17.3 x W12.2 x H7.8 inches (L441 x W312 x H200 mm)
Weight:
Around 57lb (Around 26kg)
Operating Temperature:
32°F to 113°F (0°C to 45°C) Charging
-4°F to 113°F (-20°C to 45°C) Discharging
Protection:
Over-Voltage, Overheat, Overload, Short-Circuit, Self-Recovery
Certifications:
CE, FCC, ROHS, ICE 60417 - 5172 Class 2
Warranty:
2 Years Product Warranty
