Flex-AC Level 2 Smart EV Charger
Loading images...
Hot ItemFlex-AC Level 2 Smart EV Charger
0 Reviews$369.00CAD
Loading...
Output:
App Communication:
Color:
Quantity:
1
Pair well with:
Free, Fast shipping
2-Year Worry-Free warranty
30-day return or exchange policy
Customer Support response within 2 business days
Delivery methods:
$369.00CAD
Get the Flex-AC Charger to Start Earning GreenMiles Rewards
Earn $100 for every 1,000 kWh charged, no extra cost, transparent & automatic, and available to all Canadian residents.
Charging Smarter While Saving
Maximize savings by scheduling off-peak charging using the Pion Power App
Toughness and Impact Resistance
Premium and sturdy build, successfully passed 3.3ft free fall test and 1000kg rollover

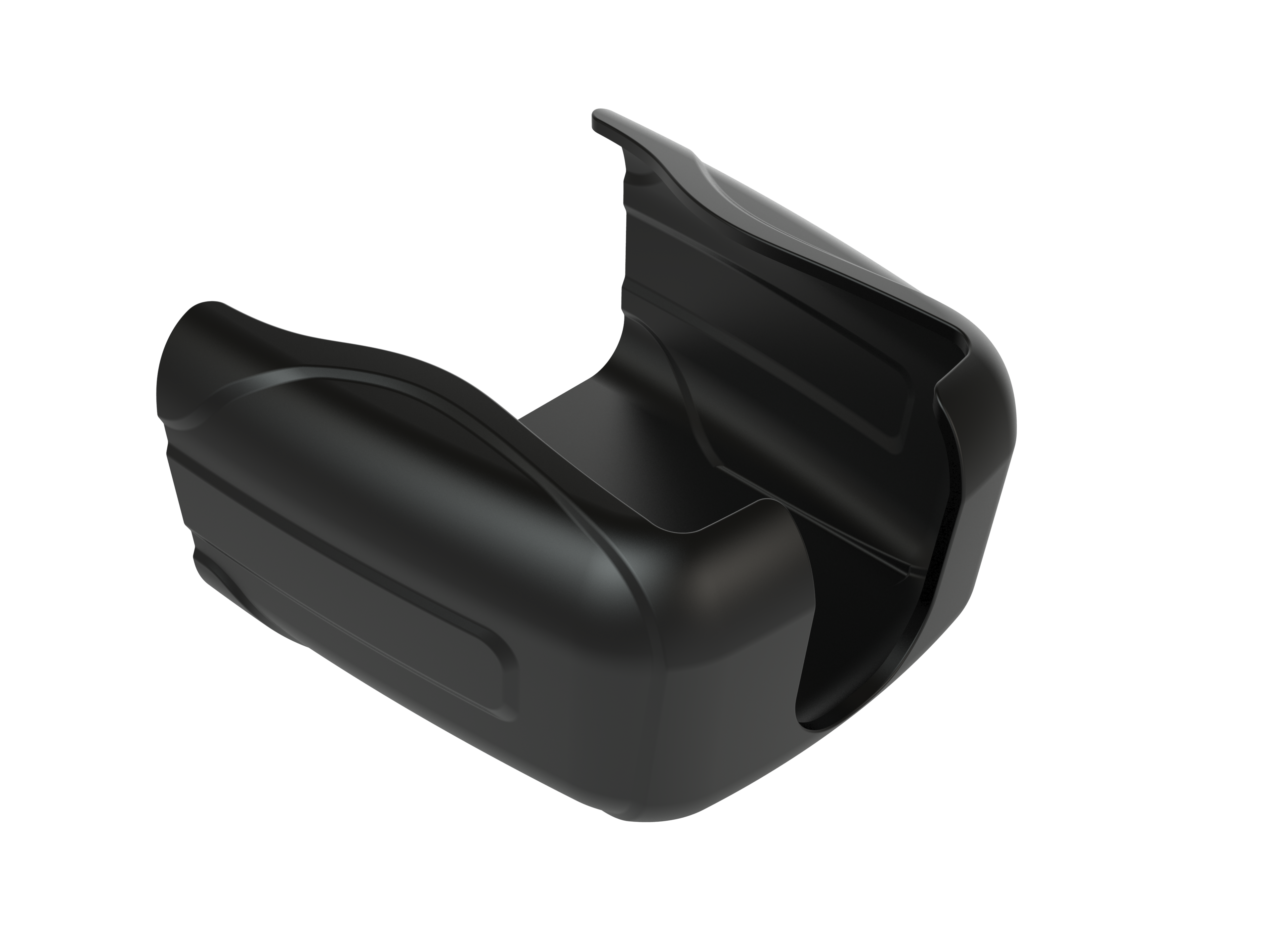

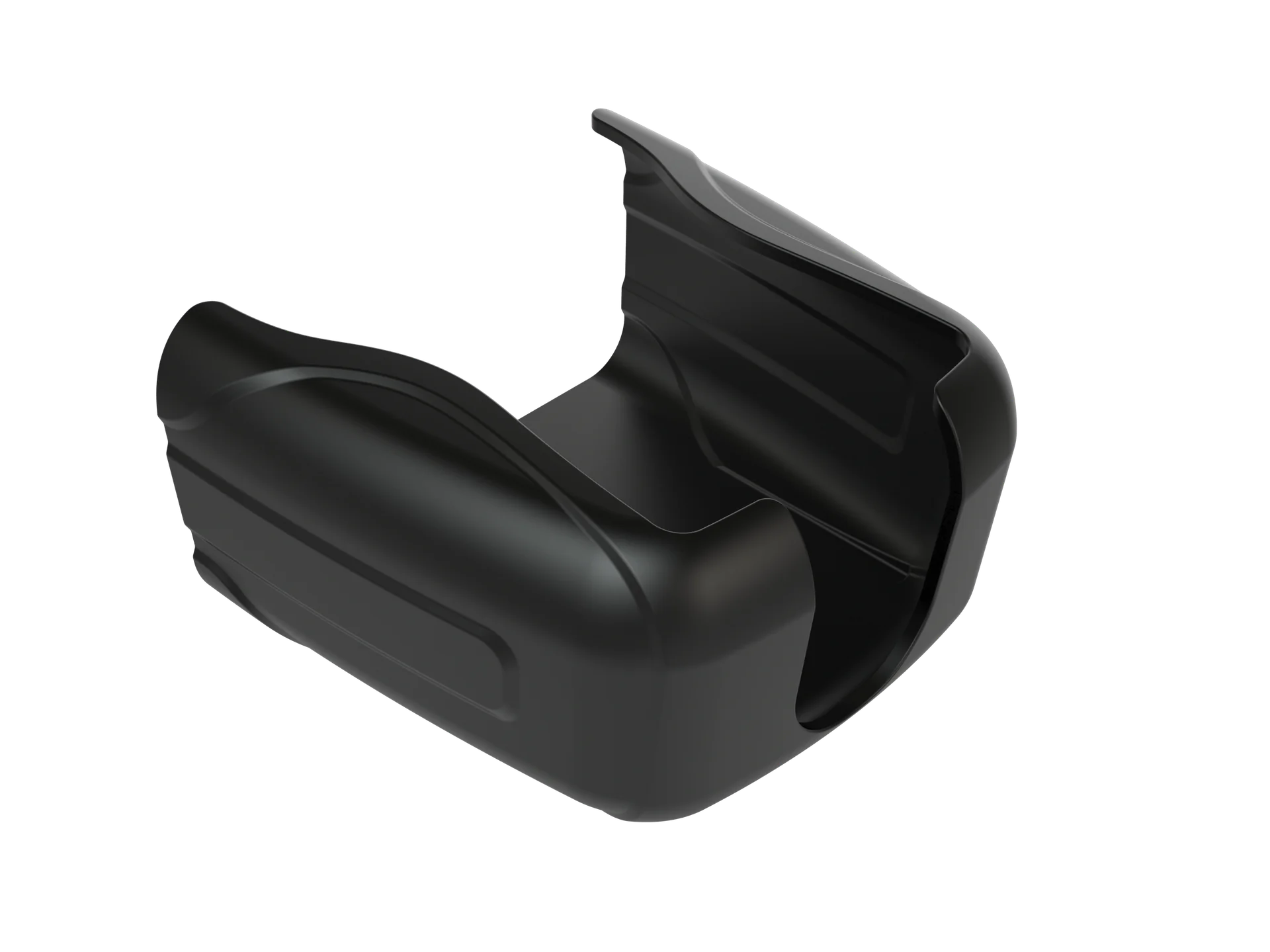

Installation Made Easy
The wall-mount bracket is designed for effortless setup, protecting your adaptor and outlet from wear and tear while saving you time and costs
Stay Charged Everywhere
With NEMA 14-50P and NEMA 5-15P adaptors, powers up your EV with ease, whether you're at home or on the road
A Truly Versatile Home Charging Solution
Experience unparalleled flexibility and efficiency like never before. Say hello to a charging experience that's perfect for your needs
Need a full charge every morning?
Up to 7X Faster with 40A/9.6kW
No more waiting around for your EV to charge. Charging with up to 40A you can fully charge your vehicle overnight and start your workday with peace of mind
Plan a trip without charging station?

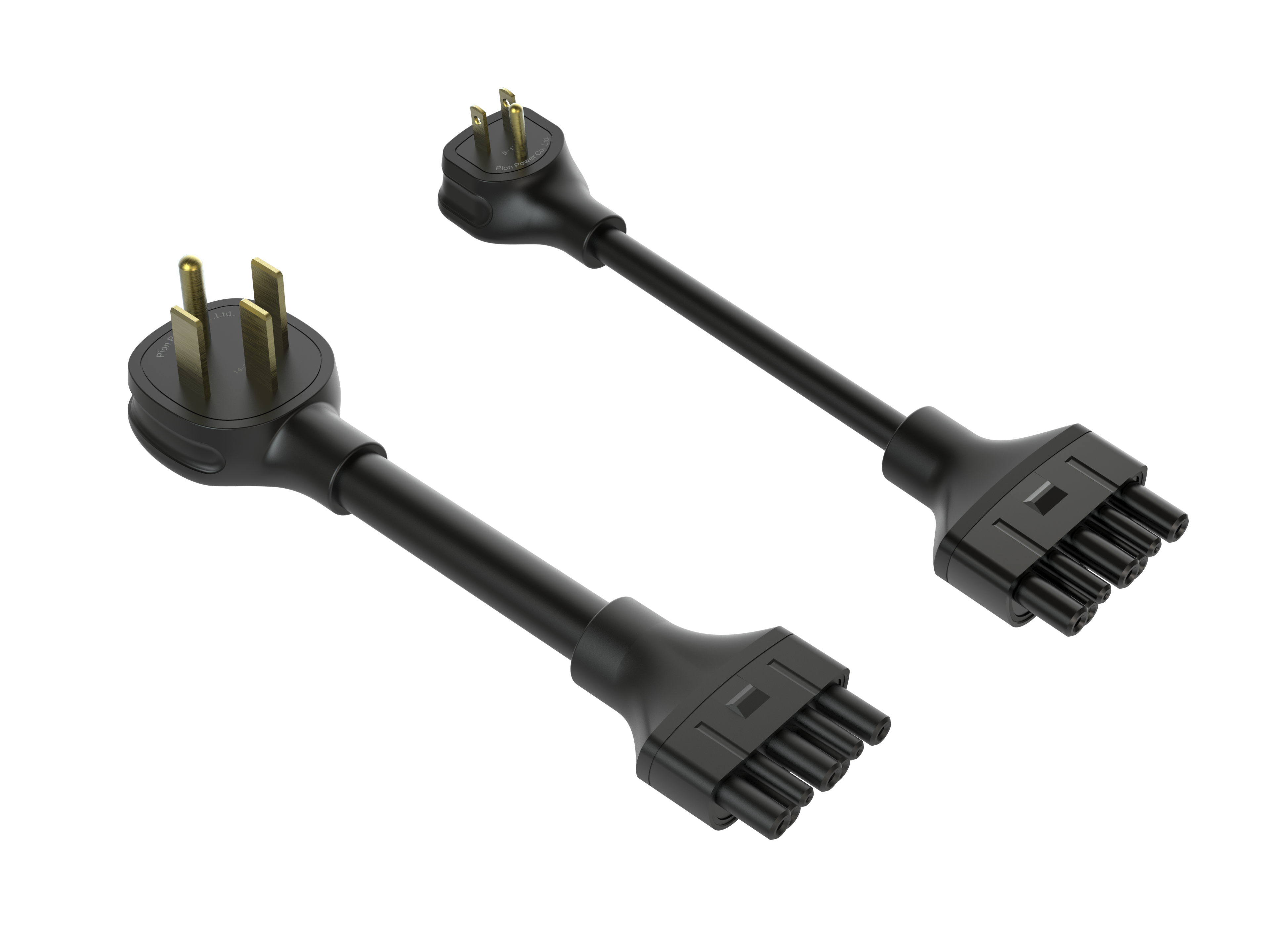

Unleash Mobility with NEMA 5-15 & 14-50 Adapters
The Flex-AC comes with 2 adapters, designed for both 120V and 240V outlets, enables you to charge your electric vehicle anywhere during travel
Want to save your walk to the garage?

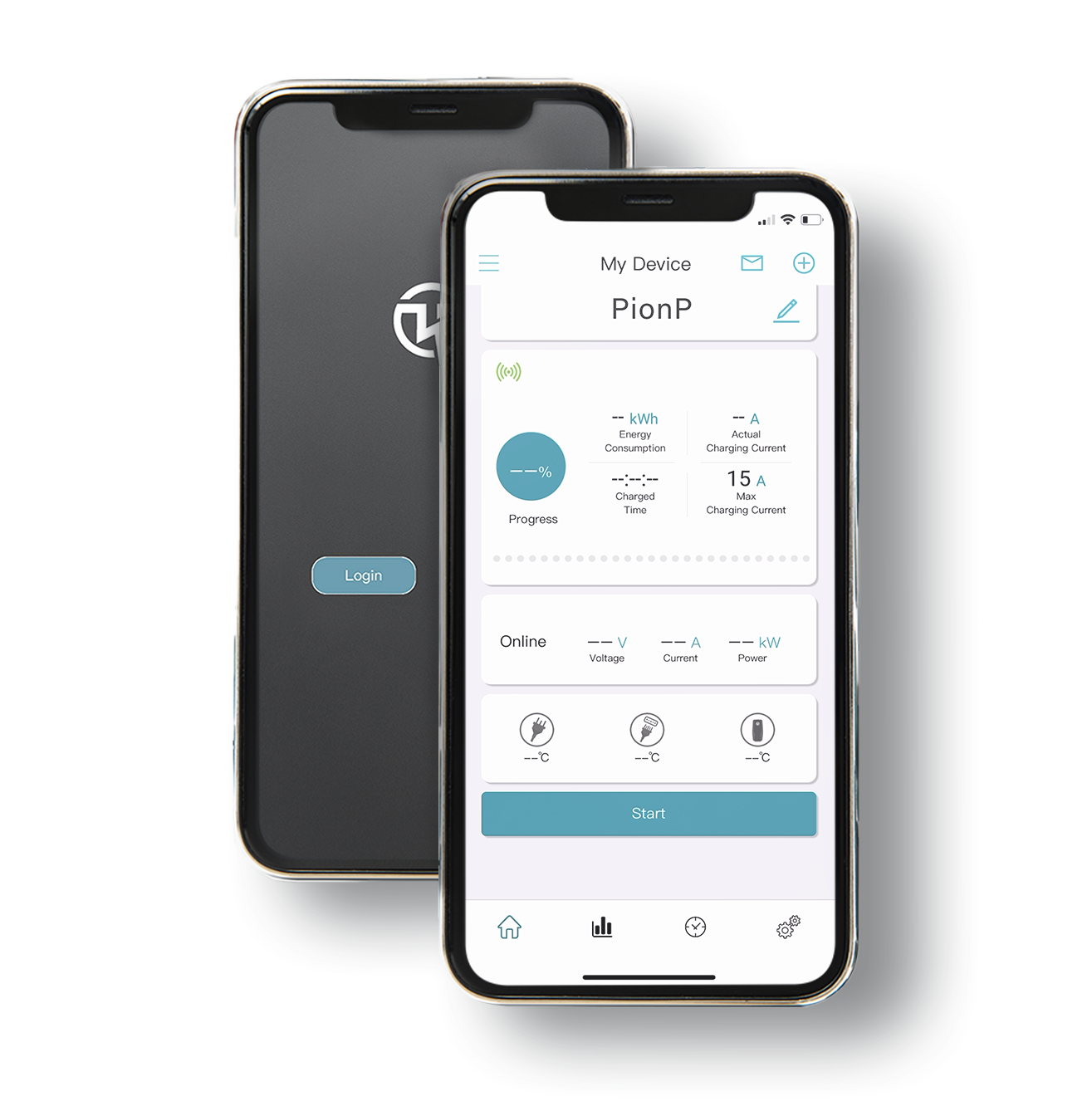

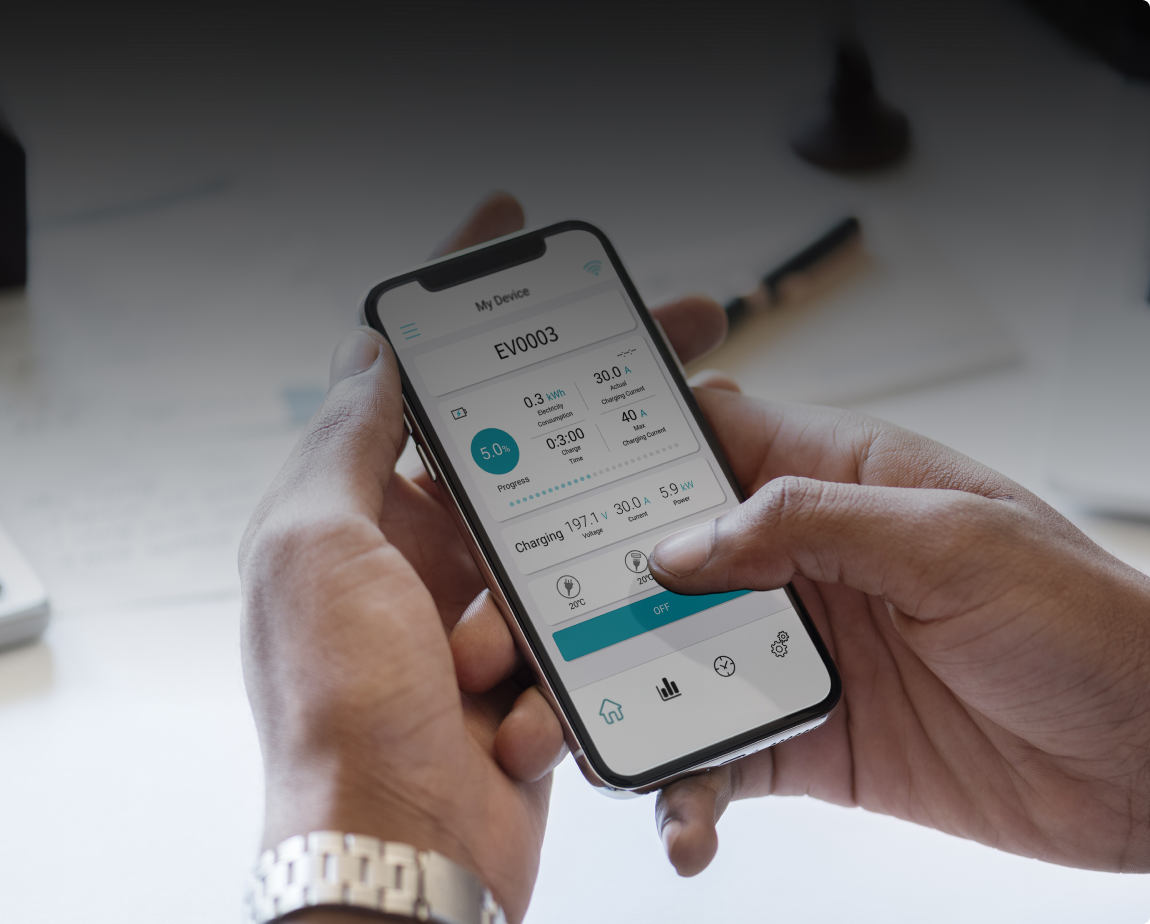

Remote Control with Smart APP
Control and monitor your charging sessions with just a few taps on your smartphone. No need to walk to the garage anymore
Worries about home circuit overload?
Adjustable Current 6A to 40A
Comes with adjustable amperage, ranging from 6A to 40A, ensuring safe and efficient charging without putting excessive strain on your home's electrical system.
Want a EVSE to fits your busy garage?

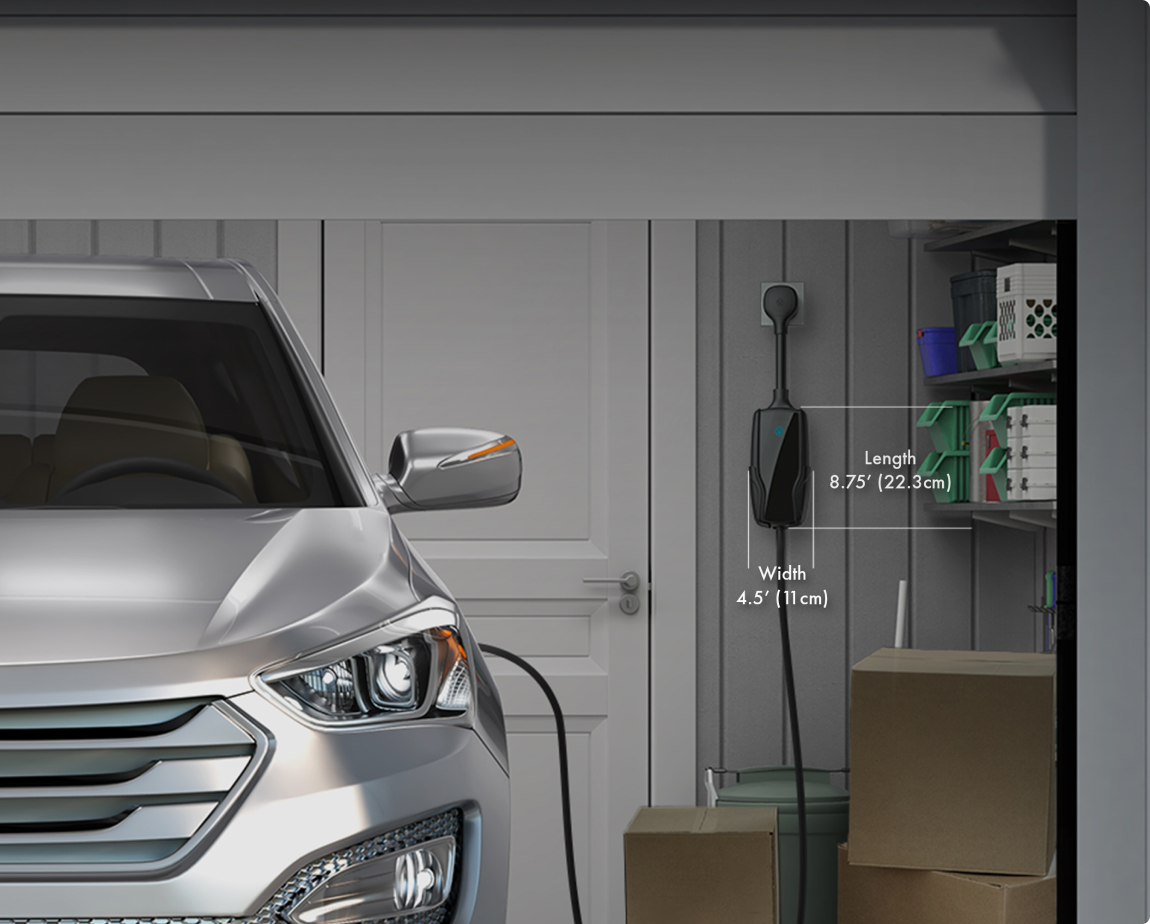

Comapct and Portable Design
With its sleek dimensions of just 4.5' (11cm) in width and 8.75' (22.3 cm) in length, Flex-AC takes up minimal space while still providing maximum charging efficiency.
Need a 14-50 Outlet for Your EV Charger?
Our licensed electricians provide professional NEMA 14-50 outlet installation across the GTA, ensuring your charger is installed safely and up to code.
Three Ways to Charge Your EV with Flex-AC
Flex-AC offers multiple charging solutions for electric vehicles, bringing you the utmost convenience in EV charging experience
Direct Charging
Hotspot Control
Wi-Fi Control

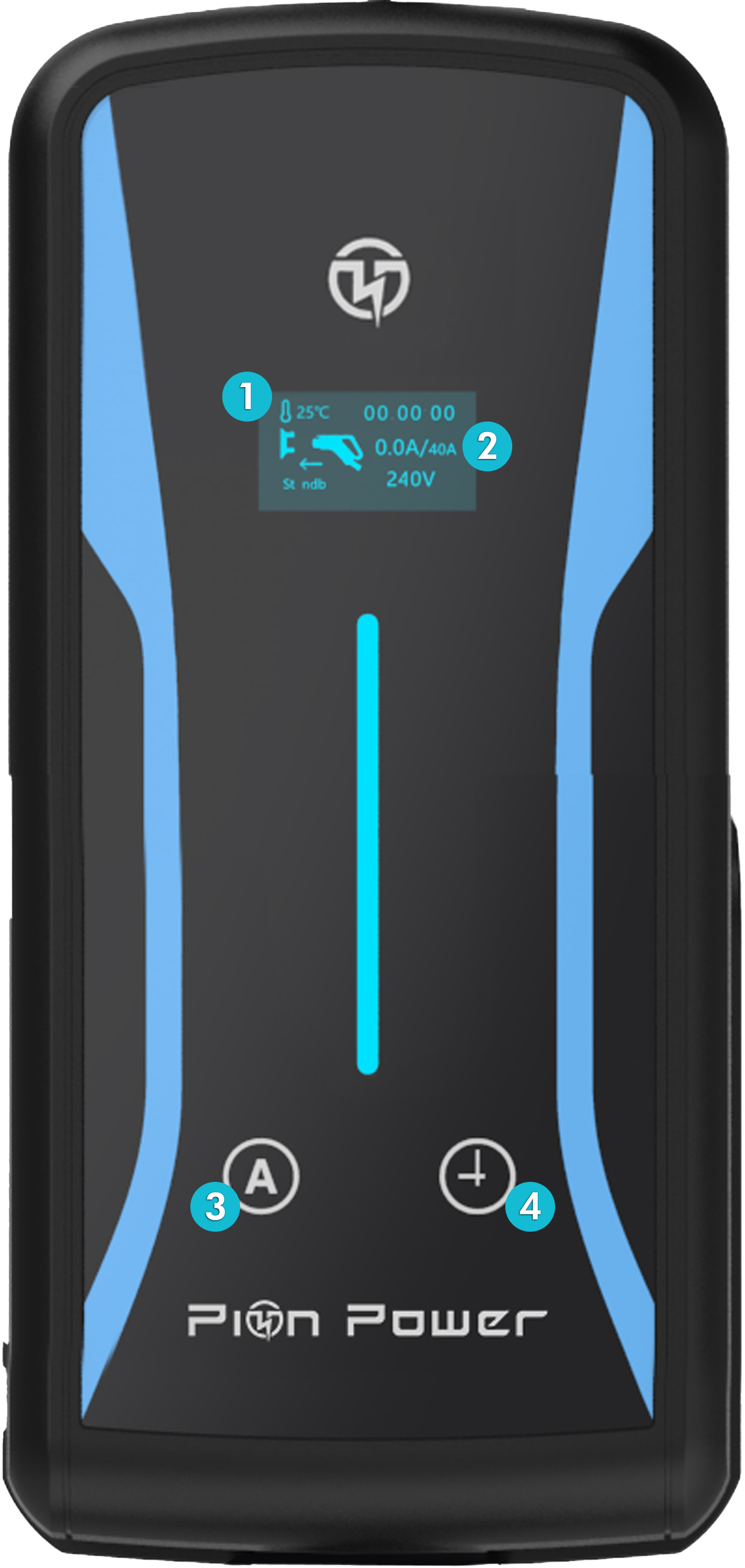

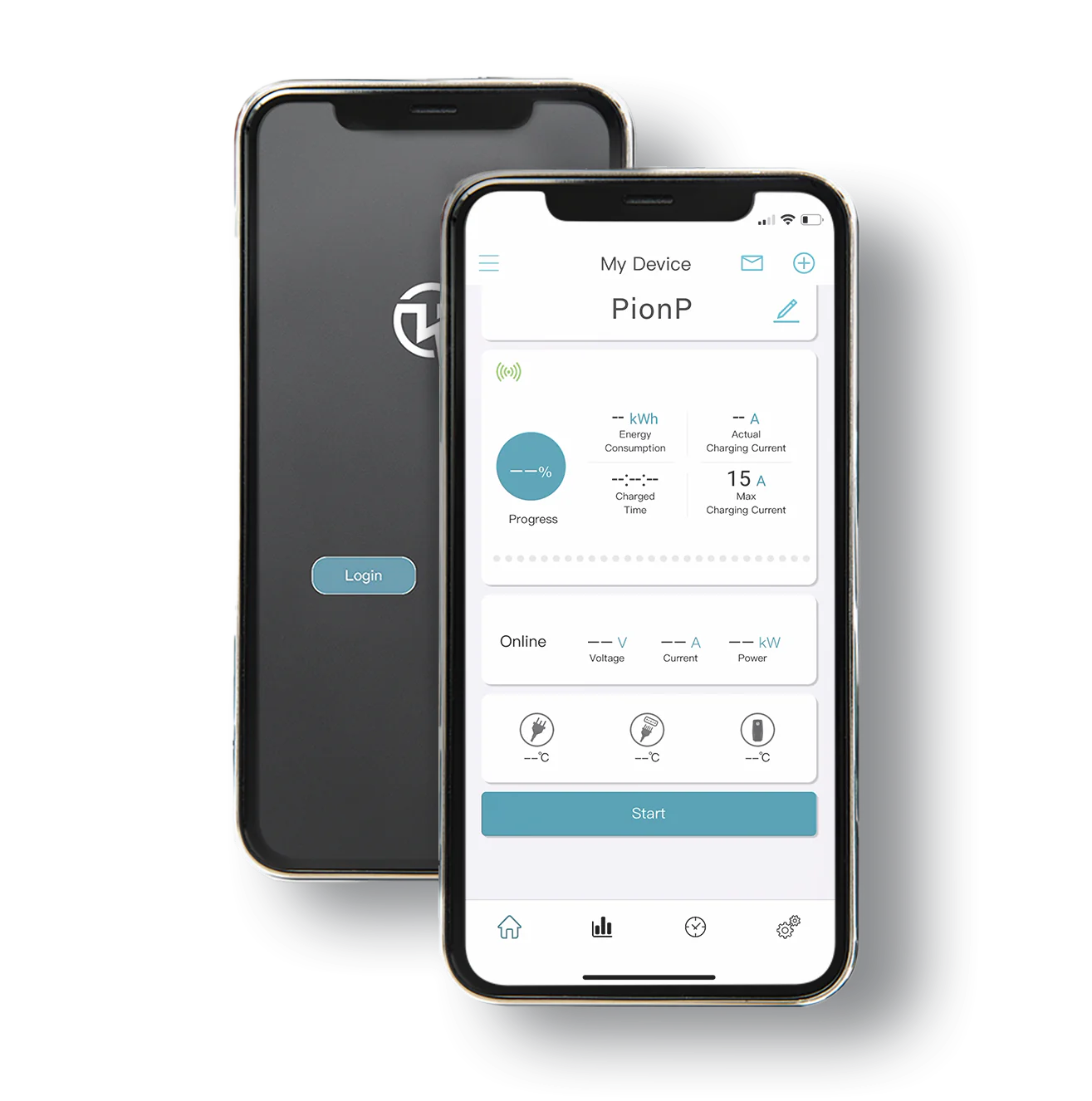

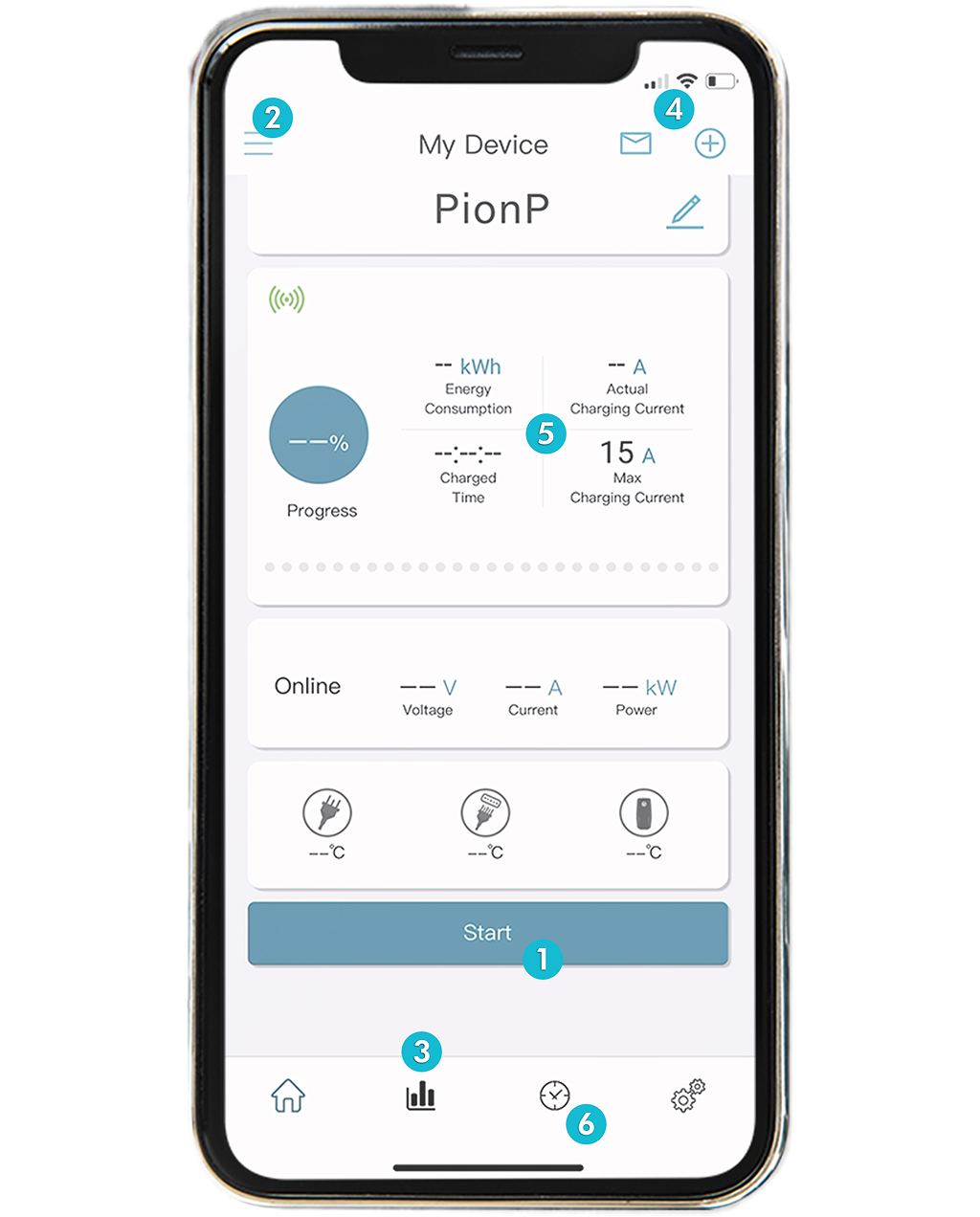

Discover Everything You Need from the Display and Controls

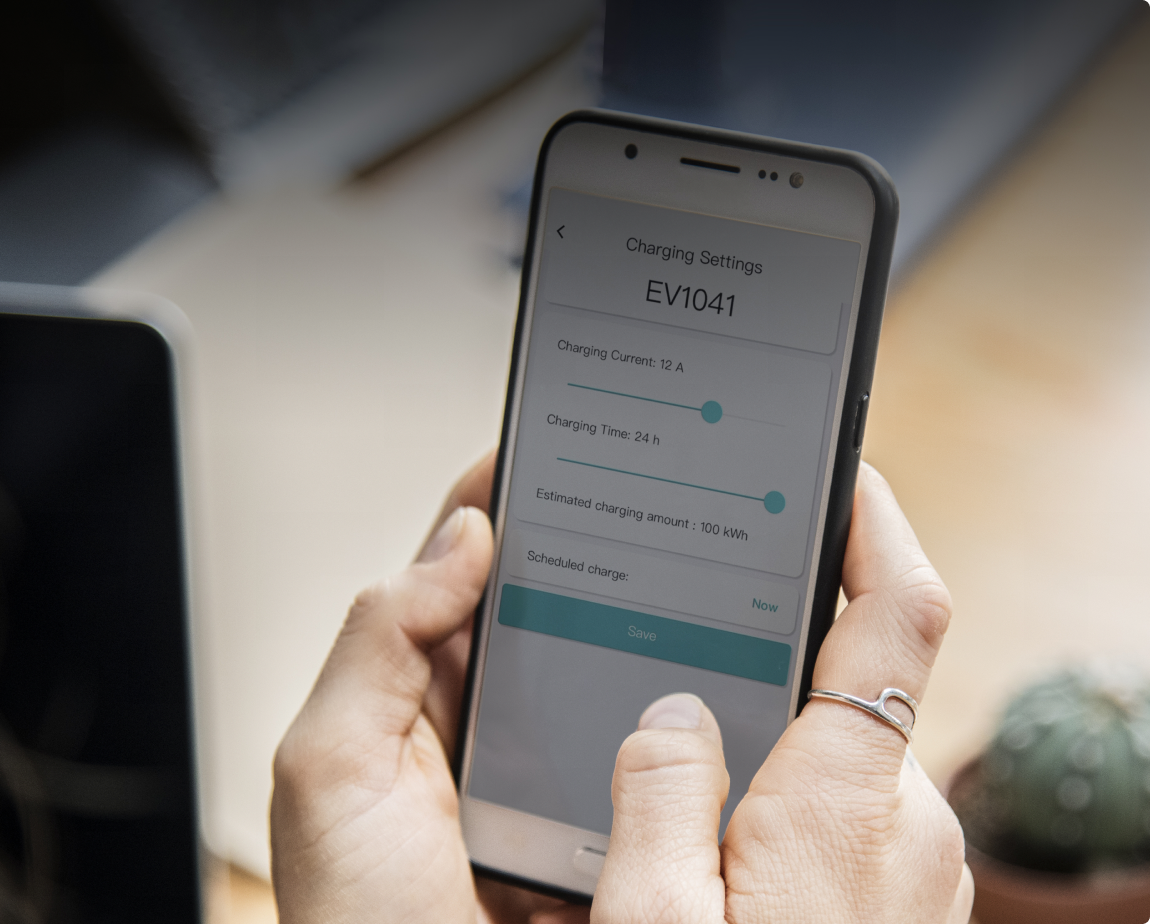

1. Remote control
Control and monitor your charging sessions with just a few taps on your smartphone, even from the comfort of your bed
4. Scheduler
Book schedules in advance and start charging automatically without extra App control
2. Real-time data monitor
Track and optimize your charging sessions with real-time monitoring through Pion smart app
5. Charging History
Book schedules in advance and start charging automatically without extra App control
3. Temperature Monitoring
Keep your charger safe with built-in temperature sensors that automatically detect and alert overheating, ensuring optimal performance in any weather.
6. GreenMiles Points Tracking
View your accumulated and redeemed GreenMiles points, monthly earnings from charging, and progress toward your next $100 reward. Earn unlimited points, every 1,000 points (per 1,000 kWh) can be redeemed for $100.
Every Component is Tested for a Secure Experience
Count on the reliability of our charging system, featuring high-quality components such as adaptors, sensors, and NEMA 4/IP66 enclosures. Each element is chosen to ensure a secure and worry-free charging process.
Intelligent sensing technology
Reliable plug-in solutions
Extreme weather-proofed
Protection from the following hazards:
• Overvoltage
• Undervoltage
• Leakage
• Grounding
• Overcurrent
• Fire and Flame
• Overheating
• Lighting
Protection from hazards:
• Overvoltage
• Undervoltage
• Leakage
Pion Power
Others
NEMA 4 / IP66 Enclosures
Provide robust protection for all electrical components, shielding them from:
• Falling dirt
• Rain / sleet
• Snow
• Windblown dust
• Sand

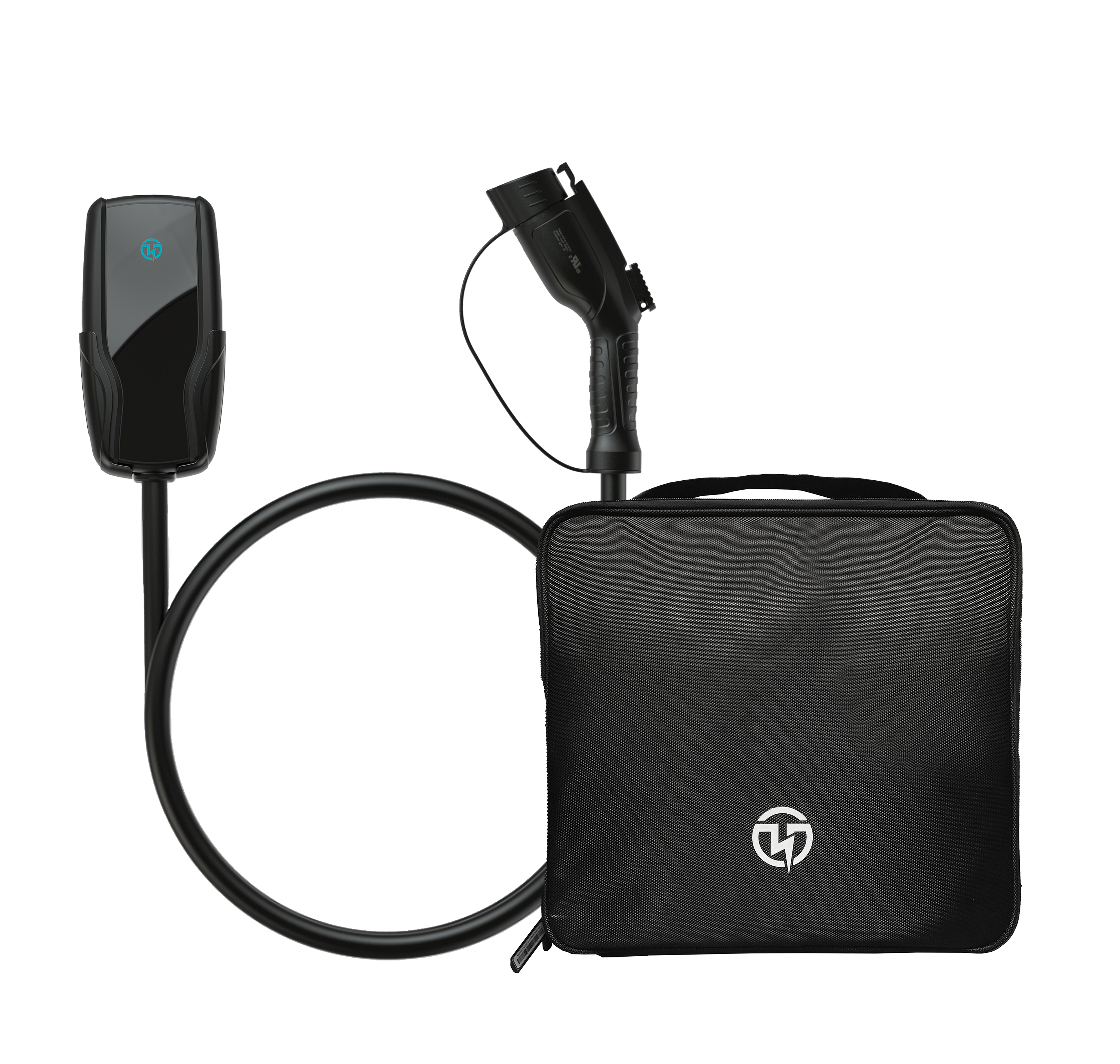

What is in the Package

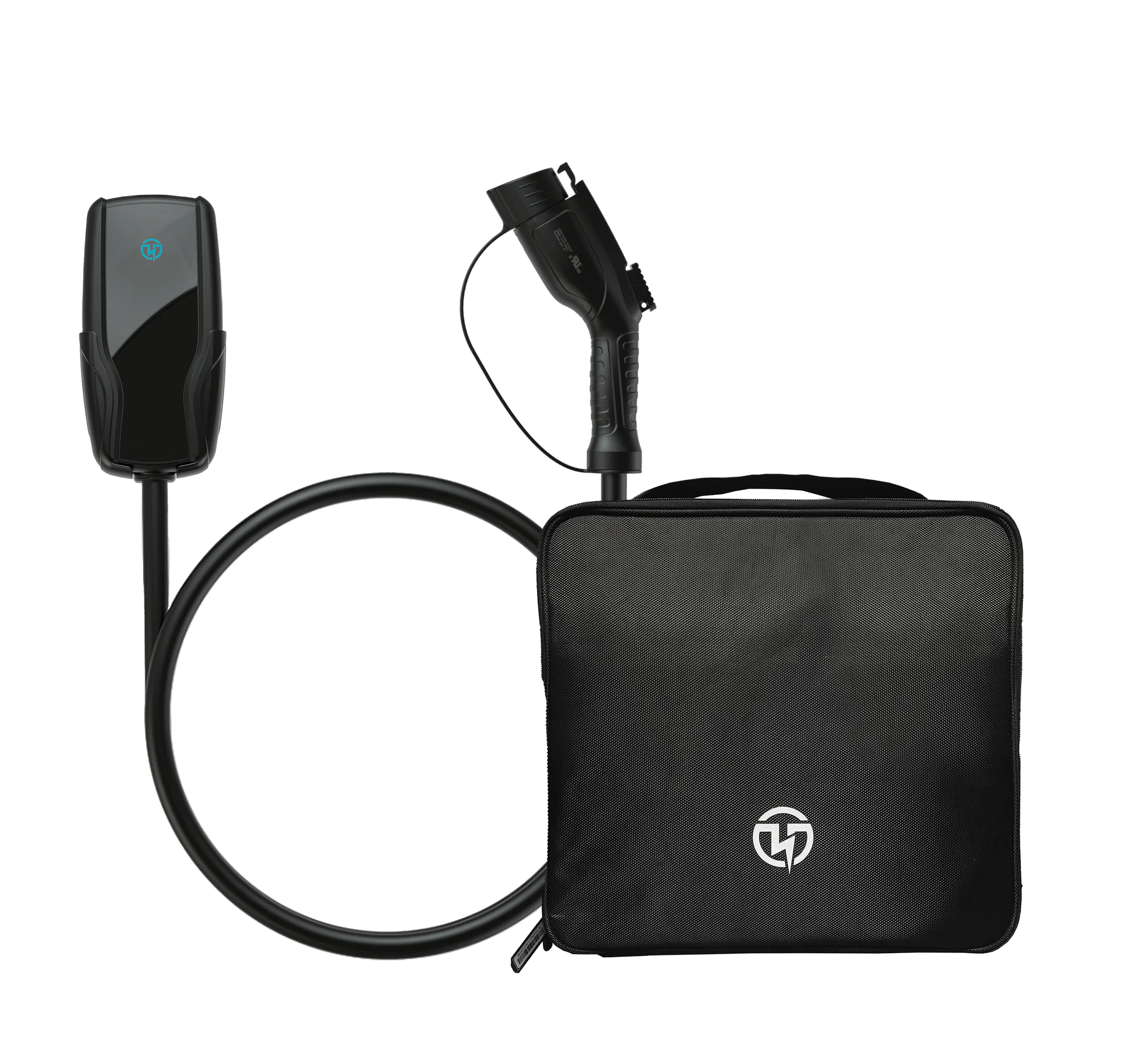

Flex-AC EV Charging Station, Organizer Zip Case

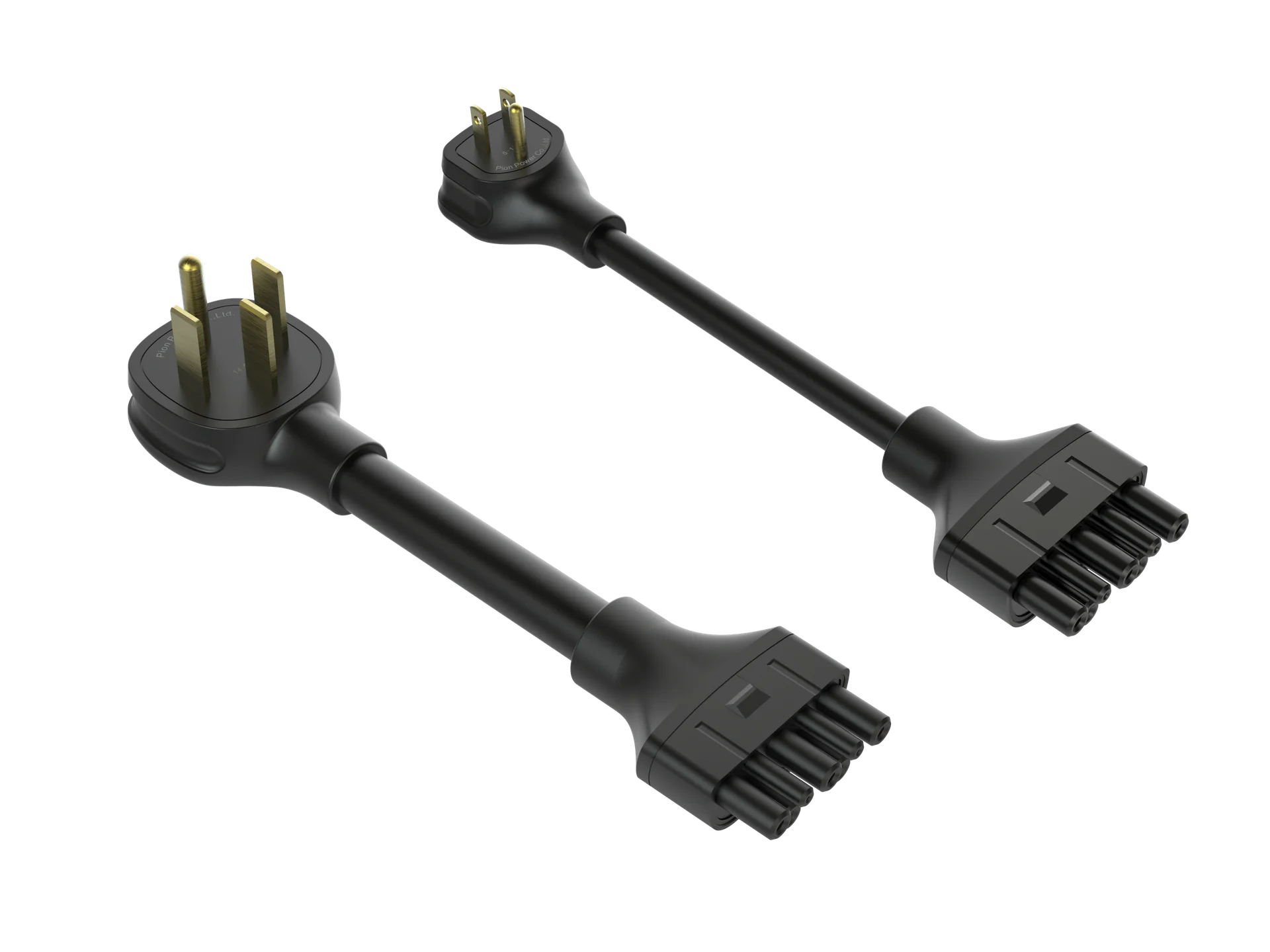

1*N5-15P Adaptor, 1*N14-50P Adaptor
User Manual
1*Wall-mount Bracket

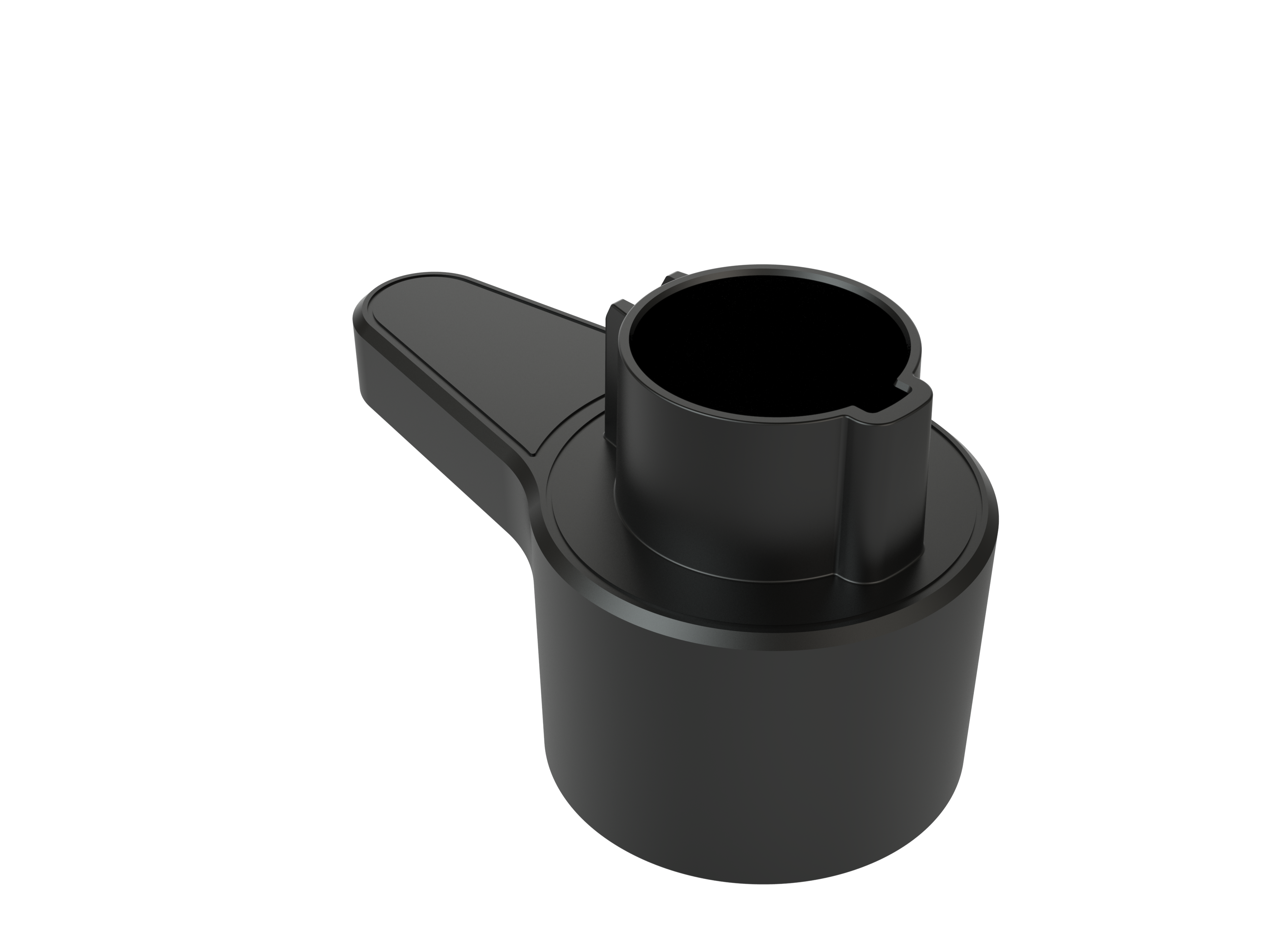

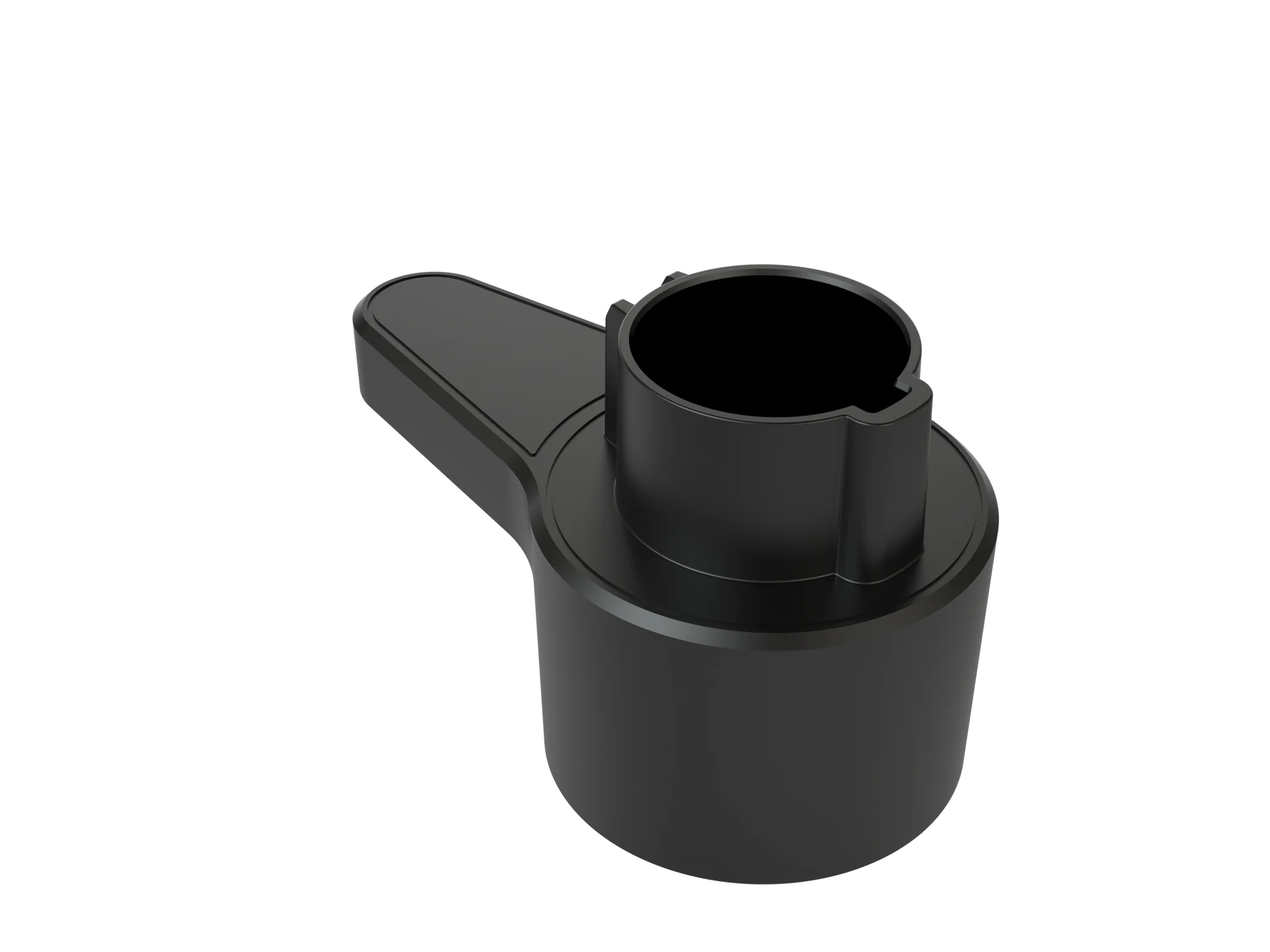

1*Charging handle Holster and Cable Holder
Downloads
Pion Power App (New)
Manage, adjust and monitor your Pion Power Flex-AC Elite/Flex-AC EV Charger and access real-time energy usage from Pion Power App
Requires iOS 11.0 or above.
Requires Android 5.0 or above.
Downloads
Pion Power App (New)
Manage, adjust and monitor your Pion Power Flex-AC Elite/Flex-AC EV Charger and access real-time energy usage from Pion Power App
Requires iOS 11.0 or above.
Requires Android 5.0 or above.
Specification
Flex-AC 32A EV Charger
Flex-AC 32A EV Charger
Flex-AC 40A EV Charger
Flex-AC 40A EV Charger
Model: EFAC32-NA11
Adapter:
N5-15P
N14-50P
Input Voltage:
120Vac
240Vac
Output Current:
12A
32A
Output Power:
1.4kW
7.6kW
Output Voltage:
100-250 volt AC single -phase
Input Frequency:
60Hz
Control Box Material:
PC+PBT. Flame retardance UL94: 5VA
Connecter & Handle Material:
PC+PBT. Copper, silver-plated
Cable Material:
TPE
Total Length:
22ft (6.6 meters) with charging handle installed
Impact Resistance:
Able to withstand 3.3ft (1 meter) freefall drop and 4,409 lbs (2,000kg) vehicle crush test without critical damage.
LED Indicator:
LED Indicator Red/green/blue
Operating Temperature:
-22°F to 122°F (-30°C to 50°C)
Working Humidity:
5% to 95% without condensation
Working Altitude:
<1.24 miles (2,000 meters)
Enclosure Type:
NEMA 4 (IP66)
Operating Environment:
Indoor/Outdoor
Cooling Method:
Natural cooling
Multiple Protection:
Over voltage protection, Under voltage protection, Overheating protection, Overcurrent protection, Leakage protection, Grounding protection, Lightning protection, Fire and flame protection, Waterproof, Dust proof, Antistatic protection
Safety Standard:
UL 2594, UL 2231-1, UL 2231-2, CSA C22.2 No. 280, CSA-C22.2 No. 281.1, CSA-C22.2 No. 281.2
Carrying Case Dimensions:
14.17 x 13.39 x 4.33 inch
Package Dimensions:
16.73 x 15.94 x 6.70 inch
Net Weight:
8.8 lbs (4.0 kg)
Gross Weight:
14.3 lbs (6.5 kg)
External Packing:
Carton
Charging Handle/ Connecter Life Cycle:
10,000 insertion/removal events (no load)
Communication:
Wi-Fi, Hotspot
Application:
Android/IOS
Warranty:
2-year limited warranty
Specification
Flex-AC 32A EV Charger
Flex-AC 32A EV Charger
Flex-AC 40A EV Charger
Flex-AC 40A EV Charger
Model: EFAC32-NA11
Adapter:
N5-15P
N14-50P
Input Voltage:
120Vac
240Vac
Output Current:
12A
32A
Output Power:
1.4kW
7.6kW
Output Voltage:
100-250 volt AC single -phase
Input Frequency:
60Hz
Control Box Material:
PC+PBT. Flame retardance UL94: 5VA
Connecter & Handle Material:
PC+PBT. Copper, silver-plated
Cable Material:
TPE
Total Length:
22ft (6.6 meters) with charging handle installed
Impact Resistance:
Able to withstand 3.3ft (1 meter) freefall drop and 4,409 lbs (2,000kg) vehicle crush test without critical damage.
LED Indicator:
LED Indicator Red/green/blue
Operating Temperature:
-22°F to 122°F (-30°C to 50°C)
Working Humidity:
5% to 95% without condensation
Working Altitude:
<1.24 miles (2,000 meters)
Enclosure Type:
NEMA 4 (IP66)
Operating Environment:
Indoor/Outdoor
Cooling Method:
Natural cooling
Multiple Protection:
Over voltage protection, Under voltage protection, Overheating protection, Overcurrent protection, Leakage protection, Grounding protection, Lightning protection, Fire and flame protection, Waterproof, Dust proof, Antistatic protection
Safety Standard:
UL 2594, UL 2231-1, UL 2231-2, CSA C22.2 No. 280, CSA-C22.2 No. 281.1, CSA-C22.2 No. 281.2
Carrying Case Dimensions:
14.17 x 13.39 x 4.33 inch
Package Dimensions:
16.73 x 15.94 x 6.70 inch
Net Weight:
8.8 lbs (4.0 kg)
Gross Weight:
14.3 lbs (6.5 kg)
External Packing:
Carton
Charging Handle/ Connecter Life Cycle:
10,000 insertion/removal events (no load)
Communication:
Wi-Fi, Hotspot
Application:
Android/IOS
Warranty:
2-year limited warranty
