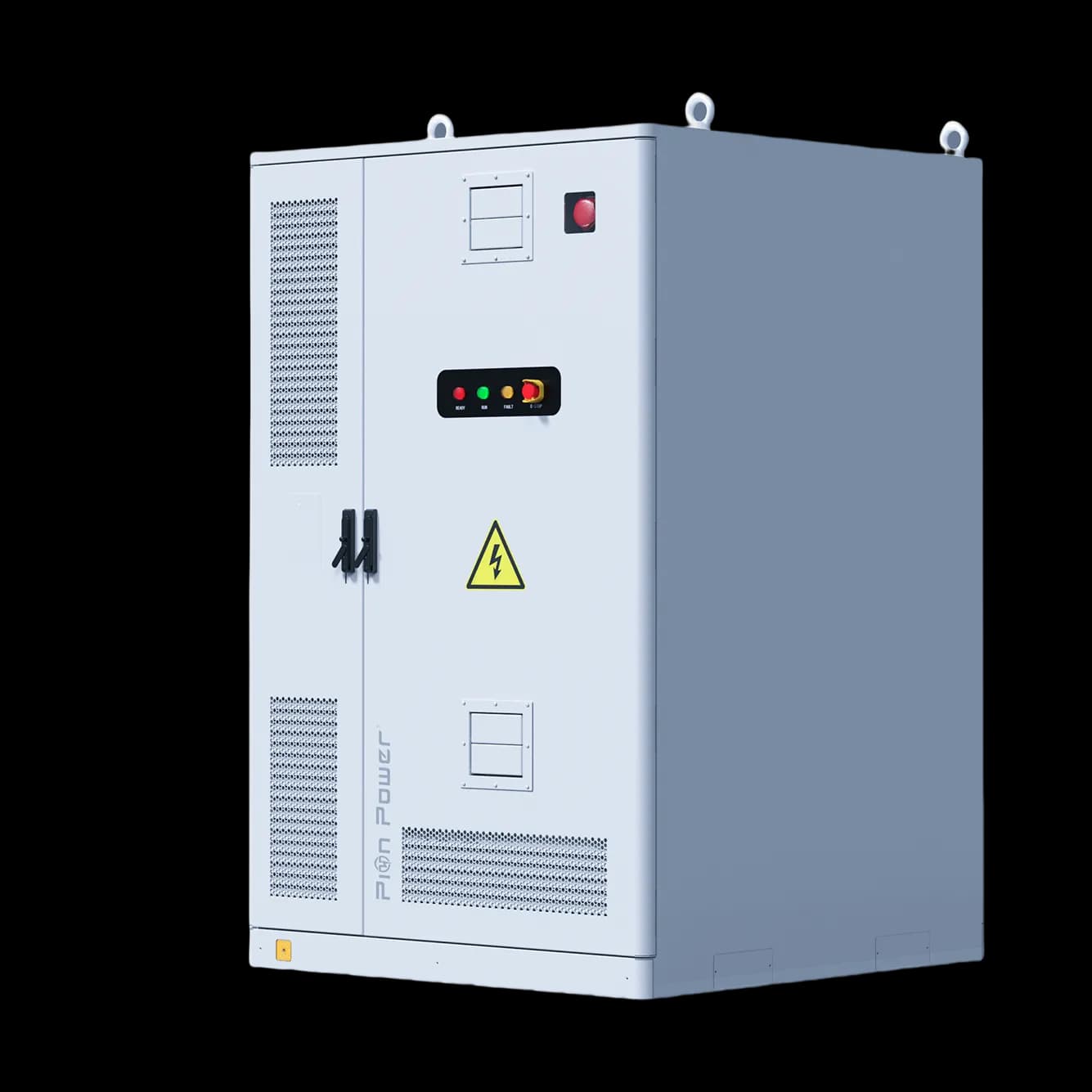

Pion Power Liquid Cooling BESS
0 ReviewsPair well with:
Product Features
- Precision liquid cooling keeps cell ΔT ≤5°C for stable performance
- High energy density with over 6,000 charge cycles for long lifespan
- Advanced EMS with real-time cluster monitoring and passive balancing
- Reduced IR deviation for higher efficiency and consistent output
- Intelligent safety with pack-level fire suppression and multi-layer protection
- Cluster-level fault isolation and PCS safeguards for reliable operation
- Grid-interactive control supports peak shaving, demand response, anti-backflow, and seamless on/off-grid switching
- Scalable design with built-in EMS; supports up to 10 units in parallel, compatible with 1000V DC systems
- Multi-protocol communication including IEC104, Modbus-RTU/TCP, MQTT, DL/T645
- Direct integration with EMS, SCADA, and smart grids, no converters required, ensuring faster, low-latency operation
- Certified durability: UL certified; IP67 battery pack and IP55 system enclosure for outdoor use
- Low-noise operation (<75 dB), suitable for residential, urban, and industrial environments
- Comprehensive monitoring with smoke, CO, and temperature sensors, plus optional water-based fire suppression

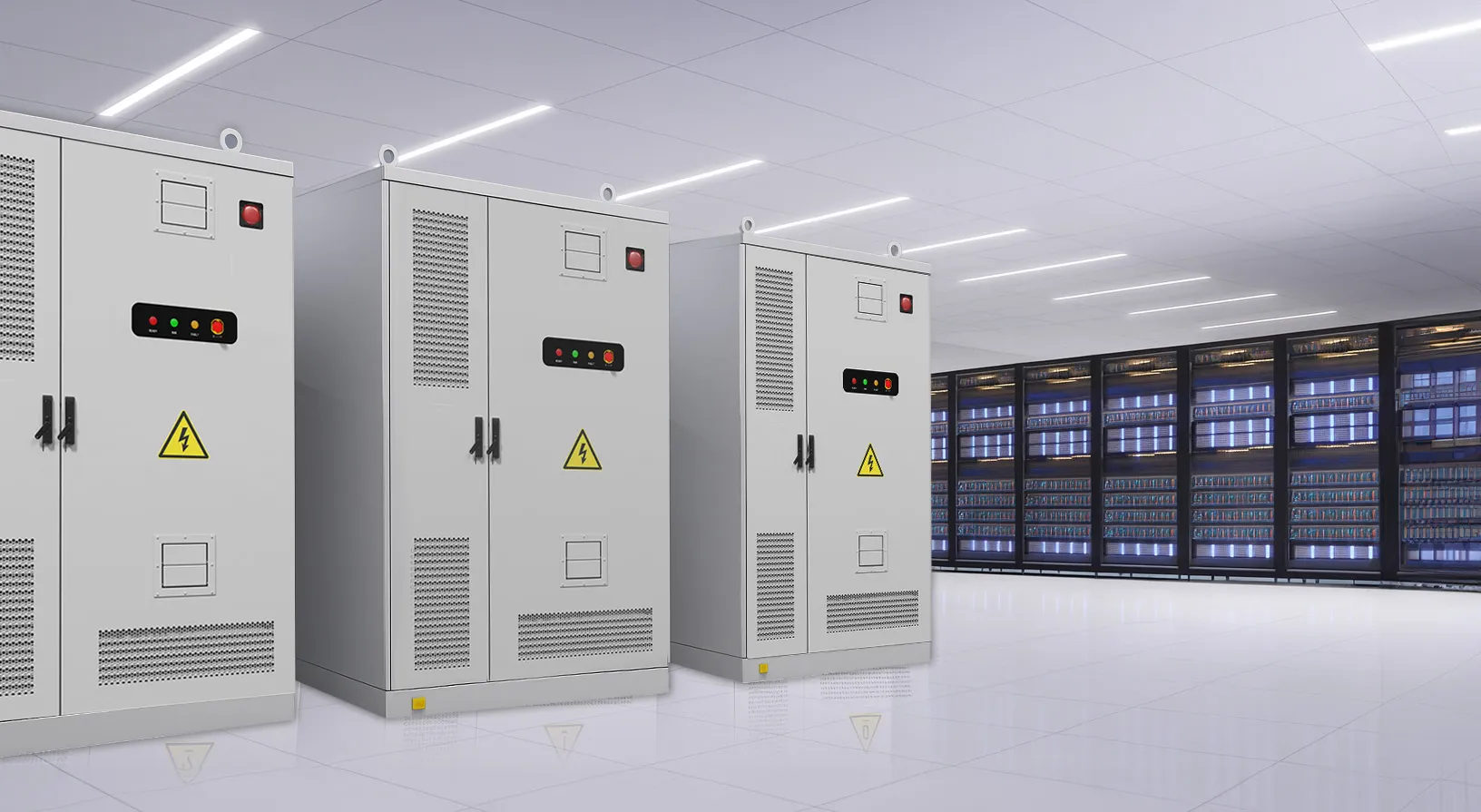

Large Factories and Data Centers
Shopping Malls, Farms, and Other Large Facilities
Industrial Parks
Efficient, Powerful, and Energy Smart

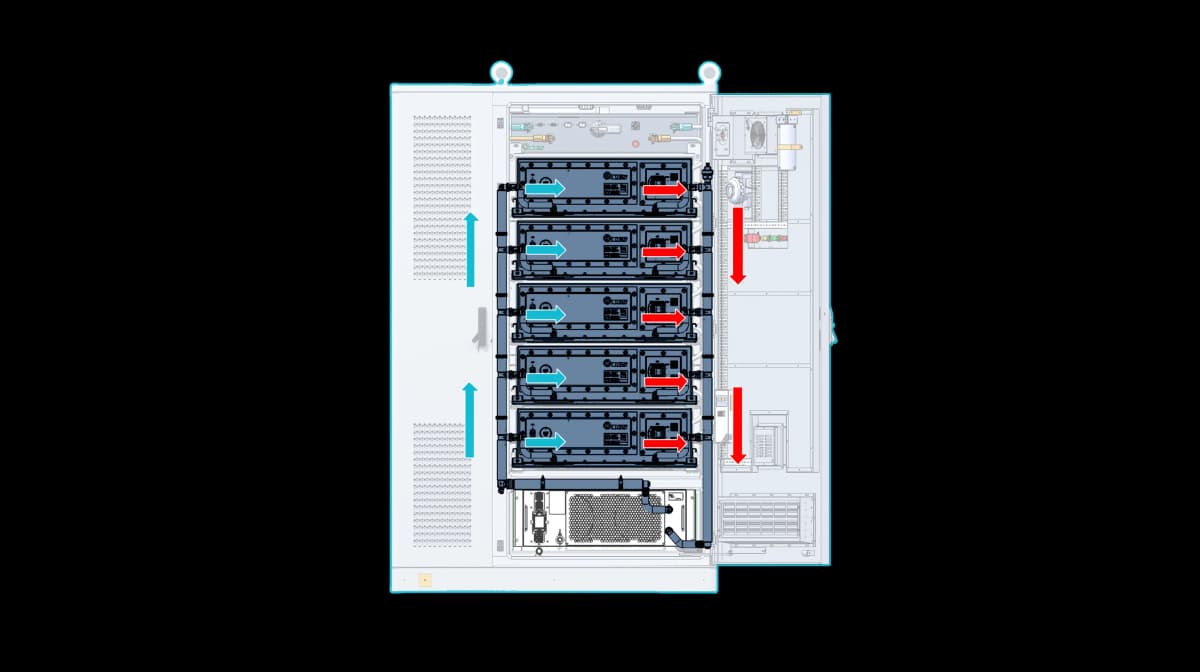

High Energy Density with Faster, Precision Cooling
The Pion Power Liquid Cooling BESS features a tightly integrated structure that delivers exceptional energy density while maintaining consistent thermal balance. Its efficient liquid cooling system provides faster heat dissipation, keeping the cell temperature differential within ≤5°C. This reduces energy loss and supports stable, high-rate charge and discharge performance
Smart Battery Management
Pion Power Liquid Cooling BESS conducts real-time monitoring and use passive balancing of each battery cluster to minimize internal resistance and voltage deviation. This ensures consistent performance across modules, enhances overall energy efficiency, and extends the operational lifespan of the battery system
Multi-Protocol Integration for Seamless Communication
The system natively supports Modbus, TCP, MQTT, and DL/T645 protocols, enabling direct integration with EMS, SCADA, and smart grid platforms, without requiring external protocol converters or middleware. This significantly shortens deployment time, reduces system complexity, and ensures stable, low-latency data transmission.
Intelligent Safety Management
The Pion Power Liquid Cooling BESS features a multi-layer protection architecture designed to detect, suppress, and prevent thermal events and electrical faults, even under extreme conditions.
Pack-Level Fire Protection
Unlike traditional cabinet-level systems, Pion Power Liquid Cooling BESS implements pack-level suppression, targeting thermal incidents where they begin for faster, more effective response
Multi-Layer Short Circuit Protection
Short-circuit protection is applied across the battery, PCS, and control system to isolate problems quickly and safely.s
PCS Communication Protection
The PCS is designed with multiple communication safeguards to keep the system stable during power or signal issues.
Cluster-Level Battery Management
Each battery cluster is monitored and managed separately in real time. This allows the system to quickly detect exactly where a problem occurs, making troubleshooting faster and easier. It also helps balance voltage and current more efficiently, reducing energy loss and extending battery life.

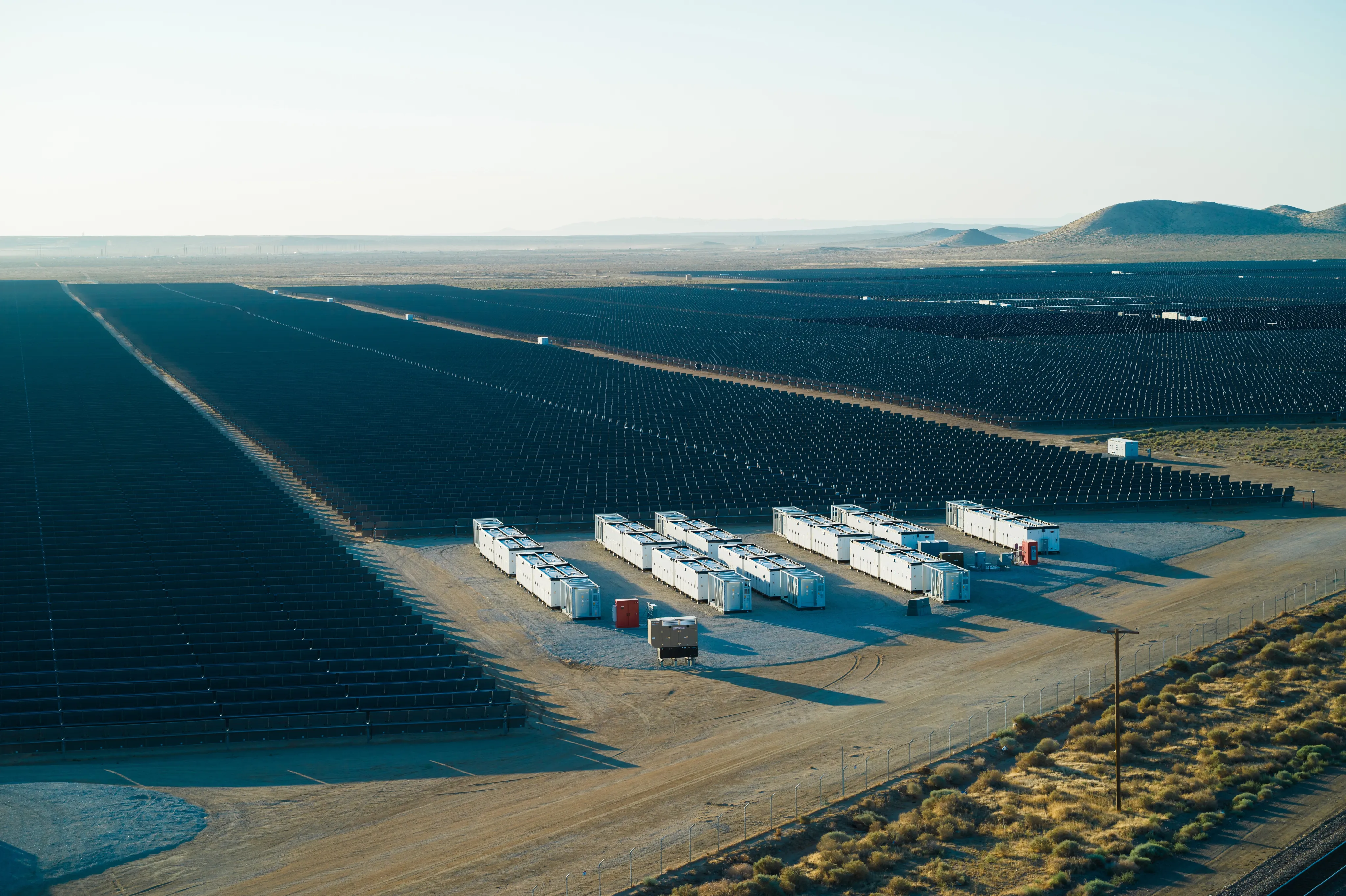

Flexible & Scalable
Each cabinet is equipped with a built-in EMS. When connected in parallel (up to 10 units), the system automatically selects one cabinet as the master, while the others operate as slave units. Designed for 1000V DC systems, this setup allows seamless capacity expansion as your energy needs grow.

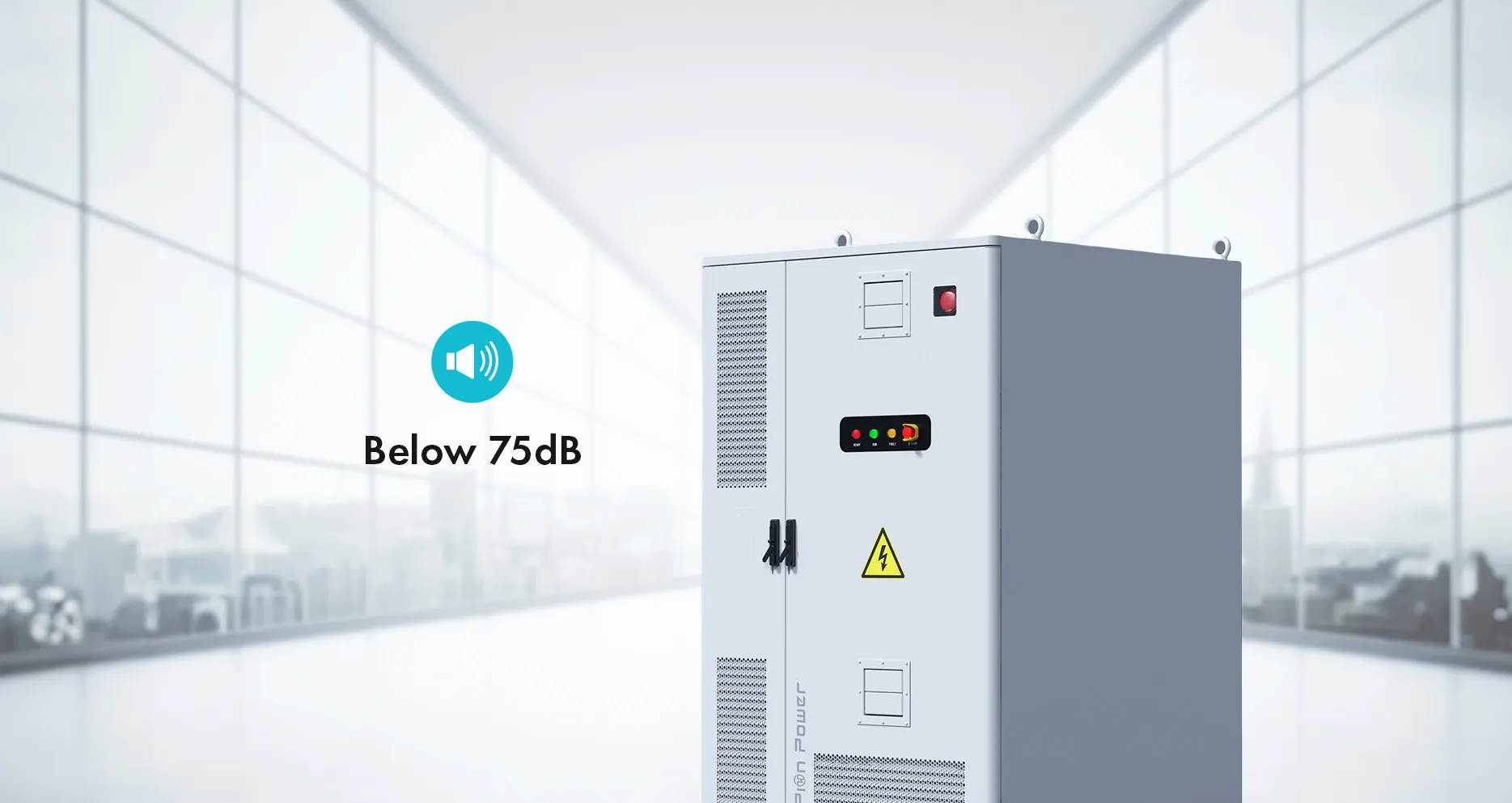

Quiet Operation
Designed for urban and industrial environments, the system operates at noise levels below 75dB, ensuring minimal disruption during continuous use, especially suitable for deployments near residential areas, office buildings, schools, and noise-sensitive facilities.
•
Peak Shaving
•
Prevents backfeed into the utility grid
•
Grid-Tied & Off-Grid Switching
•
Demand Response Capability
Enhanced Safety Features
Pack-Level Fire Protection
The system integrates smoke, CO, and temperature sensors to continuously monitor internal air conditions.When abnormal gas levels or heat are detected, high-speed exhaust fans are automatically activated to expel flammable gases. This process reduces gas concentration, helps relieve internal pressure, and prevents the risk of explosion.
Water-Based Fire Suppression
For projects requiring the highest level of fire control, the system supports optional water-based fire suppression, offering enhanced protection for mission-critical installations
Superior dust and water resistance
Pion Power Liquid Cooling BESS is built for reliability with an IP67-rated battery pack and IP55 system enclosure, offering superior dust and water resistance, even in harsh outdoor conditions.

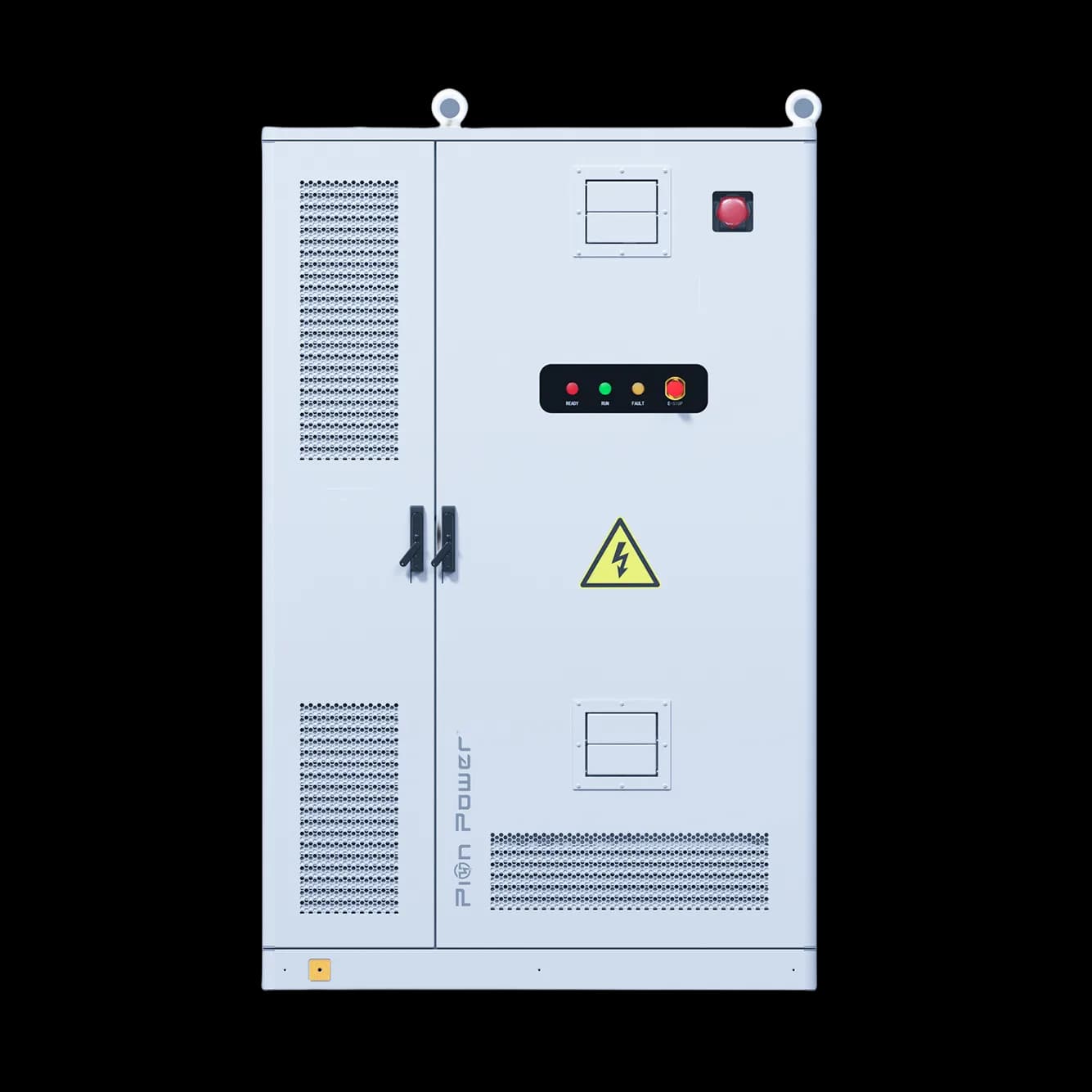

Product Details
1. Air inlet/PCS
2. Front left grounding point
3. Air outlet/Explosion-proof fan
4. Audible and visual alarm
5. Emergency stop button
6. Air inlet/Explosion-proof fan
Product Details
Specification
DC Side
Cell Type
Lithium iron phosphate
Cell Specification
3.2V, 314Ah
System Configuration
(1P52S) 5S
System Rated Capacity (kWh)
261
System Nominal Voltage (V)
832
System Voltage Range (V)
750~936
Charge/Discharge Current (Rated, A)
157 (0.5C)
Charge/Discharge Current (Max., A)
183 (≤0.5P)
AC Side (Grid-Connected)
Rated Output Power (kVA)
125
Rated Current (A)
150
Rated Grid Voltage (Vac)
277/480Vac, 3W+N+PE
Rated Grid Frequency (Hz)
60
Power Factor Range
1.0(Lagging)…1.0(Leading)
Grid-Connected Current Total Harmonic Distortion (THDi)
≤3%
AC Side (Grid-Connected/Off-Grid)
Rated Output Voltage (Vac)
277/480Vac, 3W+N+PE
Max. Output Power (kVA)
125
Max. AC Current (A)
150 (linear load) / 100 (non-linear load)
Max. Unbalanced Load (kVA)
22 (linear load)
Output Voltage Frequency (Hz)
60
Max. Allowable Crest Factor
2.5
Total Harmonic Distortion Rate of Output Voltage (THDv)
<3%
Protection
Protection Functions
AC/DC short circuit protection, DC/AC overvoltage/undervoltage protection, AC/DC overcurrent protection, SOC alarm, cell overvoltage/undervoltage protection, high temperature alarm, overload protection
System Parameters
Isolation Transformer Type
Non-isolated
Number of Parallel Units (PCS)
10
Auxiliary Power per Cabinet (kW)
3.5
Fire Extinguishing Medium
PACK-level/cabinet-level aerosol + water fire suppression
Fire Detection Type
Heat, CO, smoke detectors
Operating Environment
Permissible Ambient Temperature
-25°C ~ 50°C (>40°C derating operation)
Permissible Ambient Humidity
0~95%RH (No condensation)
Altitude
2000m (>2000m derating)
Basic Parameters
Dimensions (WxDxH)
(1350±10)x(1400±10)x(2100±10) mm
Weight
2850kg±2%
Cooling Method
Intelligent liquid cooling
Coolant
50% water ~ 50% ethylene glycol solution
Ingress Protection (IP)
IP55
Protection Degree
NEMA type 3R
Noise
<75dB
Communication Parameters
External Communication Interface
RJ45
External Communication Protocol
Modbus TCP, MQTT
Certification
UL1973:2022, UL9540:2023, UL9540A:2025, NFPA69, UL60730, UN38.3
